Product Name:

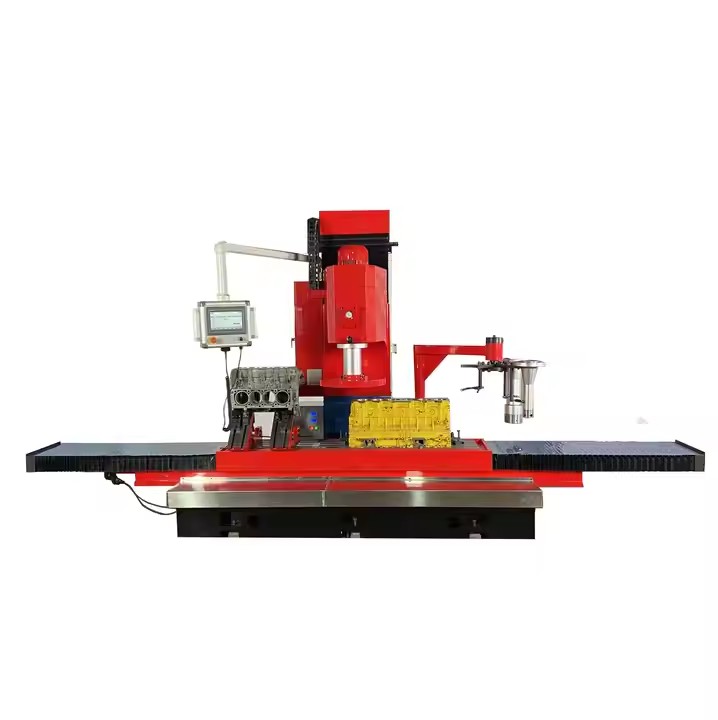

TX1500 TX2150 TX2500 Cylinder Boring Milling Machine
No. :
 |
Rotating speed and feed of spindle as well as the movement of worktable is free-setup, automatical retuming of spindle can be realized
Longitudingal and cross movement of table
Complete set of accessories of boring, milling, drilling & reaming and easy exchange
Tool fast centering device
Tool measuring device
Boring depth control device
Table with digital readout for jig borer machine
|
Item |
TX1500 |
TX2150 |
TX2500 |
|
Boring range |
Φ400mm |
Φ400mm |
Φ400mm |
|
Max. boring head travel |
1000mm |
1000mm |
1000mm |
|
Distance spindle centre to column |
375mm |
410mm |
410mm |
|
Max. distance boring slid to table |
1500mm |
1500mm |
1500mm |
|
Spindle speed(stepless) |
50~1200r/min |
50~1200r/min |
50~1200r/min |
|
Bring feed (Stepless) |
14~900mm/min |
14~900mm/min |
14~900mm/min |
|
Max. boring depth |
500mm |
500mm |
500mm |
|
Table surface |
500×1500mm |
500×2150mm |
600×2550mm |
|
Table travel lengthwise |
1500mm |
2150mm |
2700mm |
|
Max. milling length |
1100mm |
1800mm |
2300mm |
|
Table speed (Stepless) |
0~2000mm/min |
0~2000mm/min |
0~2000mm/min |
|
Table movement crosswise |
200mm |
200mm |
200mm |
|
Max. workpiece on machine |
1000kg |
1200kg |
2500kg |
|
Milling width |
315mm |
315mm |
400mm |
|
Optional milling width |
400mm |
400/500mm |
315/500mm |
|
Max. distance between outer cylinder centres |
1250mm |
1850mm |
2550mm |
|
Spindle motor |
5.5KW |
5.5KW |
5.5KW |
|
Motor for boring feed (servo motor) |
2KW |
2KW |
2KW |
|
Motor for table feed (servo motor) |
2KW |
2KW |
2KW |
|
Amount of working table T slot |
5 |
5 |
5 |
|
Work height required |
2860mm |
2860mm |
2860mm |
|
Height of column |
2100mm |
2100mm |
2100mm |
|
Total length of machine |
2600mm |
5100mm |
5900mm |
|
Total width of machine |
1630mm |
1700mm |
1900mm |
|
Working space required |
3700×1630mm |
5100mm×1700mm |
6000mm×1900mm |
|
Net. Weight approx.. |
3500kg |
5000kg |
5800kg |
|
Shipping weight approx. (wooden box) |
3800kg |
5600kg |
6600kg |
|
Shipping space required |
2230×1870×2580mm |
3550×1924×2580mm |
4350×21400×2580mm |
|
Shipping volume |
10.8 |
18.02 |
23.19 |
