Product Name:

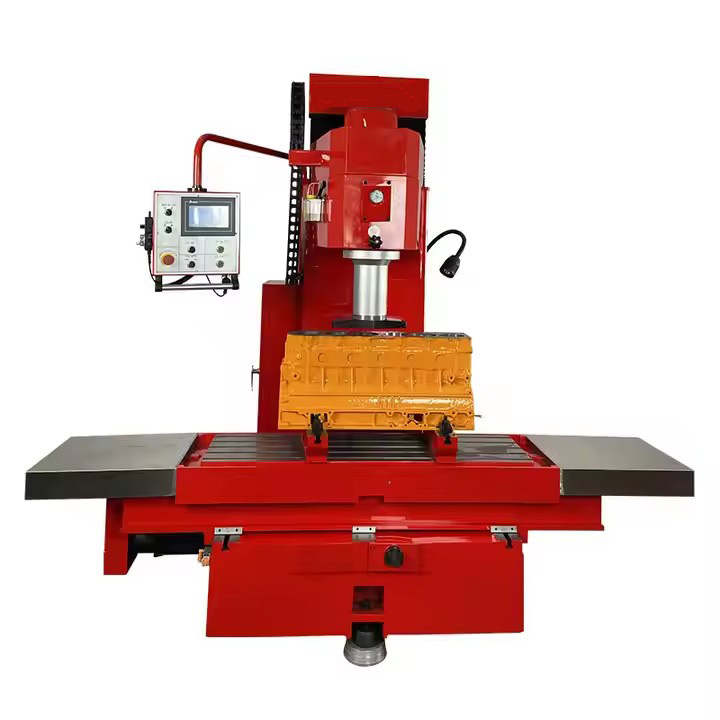

TX170A TX200A TX250A Vertical Fine boring & milling machine
No. :
 |
2. Rotating speed and feed of spindle as well as the movement of worktable is free-setup, automatical returning of spindle can be realized.
3. Longitudingal and cross movement of table.
4. Complete set of accessories of boring, milling drilling & reaming and easy exchange.
5. Spindle fast centering device.
6. Tool measuring device.
7. Boring depth control device.
8. Table with digital readout for this small boring machine.
Specifications:
|
Vertical boring & milling machine |
TX170A |
TX200A |
TX250A |
|
|
Max. boring diameter |
mm |
170 |
200 |
250 |
|
Max. boring depth |
mm |
400 |
500 |
500 |
|
Max. milling area |
mm |
400x1000 |
||
|
Max. drilling & reaming diameter |
mm |
30 |
||
|
Spindle speed |
r/min |
120-860 |
||
|
Feeding of the spindle |
mm/min |
14-900 |
||
|
Rapid moving speed of the spindle |
mm/min |
900 |
||
|
Spindle travel |
mm |
700 |
||
|
Distance between spindle end face and table |
mm |
0-700 |
||
|
Distance between spindle axis and carriage vertical plane |
mm |
365 |
||
|
Longitudinal feed of worktable |
mm/min |
32-1350 |
||
|
Rapid moving speed of the table longitudinal travel |
mm/min |
1350 |
||
|
Max. longitudinal travel of the working table |
mm |
1500 |
||
|
Max. cross travel of the working table |
mm |
200 |
||
|
Worktable size (W x L) |
mm |
500x1250 |
500x1500 |
500x1500 |
|
Dimensional precision of boring hole |
H7 |
|||
|
Roundness |
mm |
0.005 |
||
|
Cylindricity |
mm |
0.01/300 |
||
|
Milling flatness |
mm |
0.1 |
||
|
Boring of Surface roughness |
um |
Ra 2.5 |
||
|
Milling of Surface roughness |
um |
Ra3.2 |
||
|
Main motor |
kw |
5.5 |
||
|
Overall dimensions (Lx Wx H) |
mm |
2600x1630x2300 |
||
|
Packing dimensions (LxWxH) |
mm |
2250x1900x 2270 |
||
|
N.W./G.W. |
kg |
3300/3600 |
3500/3800 |
3500/3800 |
