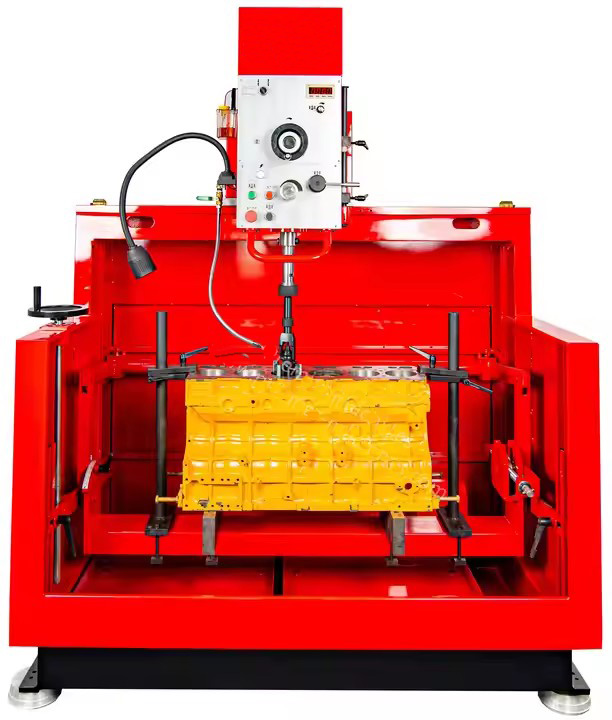

TH170D Vertical Fine Honing Machine
No. :
 |
The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks. Honing spindle with steplessly variable ratation speed visualized on the control panel.
Characteristics:
1. The spindle adopts the stepless variable speed for its reciprocating motion and rotation.
2. Short-stroke honing can be easily realized at any position within the travel of spindle to conveniently revise the workpiece.
3. Diameter of the honing head can be optionally changed during honing.
4. The spindle box is provided with pneumatic system for its convenient and flexible movement and easy centering.
5. Frame type worktable can realize up-down motion and rotation as well as the machining of v-shaped block and any other complicated workpiece even without the special fixture.
Main specifications
|
Model |
TH170D |
|
Max honing diameter |
170 mm |
|
Minimum honing diameter with automatic expansion honer |
35mm |
|
Max honing depth |
300 mm |
|
Workpiece max. length |
1200 mm |
|
Cylinder bearing plates width |
400 mm |
|
Workpiece max. length |
600 mm |
|
Roundness of honing hole |
0.0025mm |
|
Cylindricity of honing hole |
0.008 |
|
Roundness of honing hole surface |
Ra0.2ua |
|
Spindle head longitudinal stroke |
1100 mm |
|
Spindle head transversal stroke |
80 mm |
|
Max load of worktable |
200 kgs |
|
Spindle motor |
1.1kw |
|
Hydraulic plant motor |
1.5kw |
|
Electropump power |
90w |
|
Spindle rotating speed |
100-300 rpm |
|
Spindle alternative motion speed |
0-18 m/min |
|
Overall dimensions(L×W×H) |
1800×1300×2200 mm |
|
Packing dimensions(L×W×H) |
2220×1640×2290 mm |
|
.W./G.W. |
1200 /1400 kg |
