Product Name:

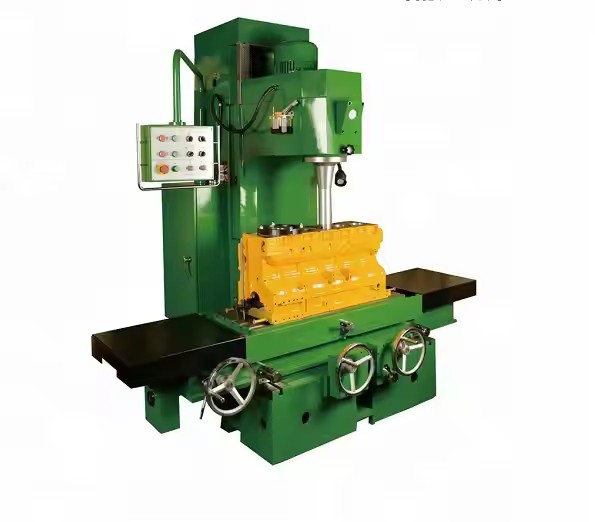

T7220D Vertical Fine Boring & Milling Machine
No. :
 |
1.Stepiess of spindle turning, feeding and table travelling
2.Rolating speed and feed of spindle as well as the movement of worktable is free-setup automatical retuming of spidle can befealzed
3.Longitudingal and cross movement of tabie
4.Complete set of accessories of boring millng, drilling&reaming and easy exchange
5.Spindle fast centering device
6.Tool measuing device
7.Boring depth control device
8.Table with digital readout for jig borer machine
|
MAIN SPECIFICATION |
UNIT |
T7220D |
|
|
Max.boring diameter |
mm |
200 |
|
|
Max.boring depth |
mm |
500 |
|
|
Max.milling area |
mm |
400x1000 |
|
|
Max.drilling & reaming diameter |
mm |
30 |
|
|
Spindle speed |
mm |
120-860 |
|
|
Feeding of the spindle |
r/min |
14-900 |
|
|
Rapid moving speed of the spindle |
mm/min |
900 |
|
|
Spindle travel |
mm/min |
700 |
|
|
Distance between spindle end face and table |
mm |
0-700 |
|
|
Distance between spindle axis and carriage vertical plane |
mm |
365 |
|
|
Longitudinal feed of worktable |
mm |
32-1350 |
|
|
Rapid moving speed of the table longitudinal travel |
mm/min |
1350 |
|
|
Max.longitudinal travel of the working table |
mm/min |
1500 |
|
|
Max.cross travel of the working table |
mm |
200 |
|
|
Worktable size (W*L) |
mm |
500x1500 |
|
|
Dimensional precision of boring hole |
mm |
H 7 |
|
|
Machining precision |
Roundness |
mm |
0.005 |
|
Cylindricity |
0.01/300 |
||
|
Milling flatness |
0.1 |
||
|
Surface roughness |
Boring |
um |
Ra2.5 |
|
Milling |
Ra3.2 |
||
|
Main motor power |
kw |
5.5 |
|
|
Overall dimensions (LxWxH) |
cm |
260x163x230 |
|
|
Packing dimensions (LxWxH) |
cm |
225x190x228 |
|
|
N.W/G.W |
kg |
3500/3800 |
|
