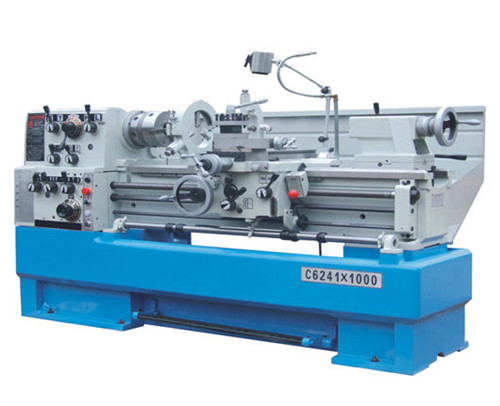

C6246 C6246V C6241 C6241V

Product Name:

C6246 C6246V C6241 C6241V

No. :

High Prcecison Lathe Features:
The guide way and all gears in the head stock are hardened and precision ground.

The spindle system is high rigidity and accuracy.

The machines have powerful head stock gear train, high rotating accuracy and smooth running with low noise.

An overload safety device is provided on the apron.

Pedal or electromagnetic braking device.

Tolerance test certificate, test flow chart included

Specification	Model
	C6241×1000		C6241V×1500			C6246×2000		C6246V×1000	C6246V×1500	C6246V×2000
Capacity
Swing over bed	410							460
Swing over cross slide	220							270
Swing in gap diameter	640							690
Distance between centers	1000	1500			2000			1000	1500	2000
Valid length of gap	165mm
Width of bed	300mm
Headstock
Spindle nose	D1-6
Spindle bore	58mm
Taper of spindle bore	No.6 Morse
Range of spindle speed	12 changes, 25～2000r/min
Feeds and threads
Compound rest travel	128mm
Cross slide travel	285mm
Max.section of tool	25×25mm
Lead screw thread	6mm or 4T.P.I.
Longitudinal feeds range	42 kinds, 0.031～1.7mm/rev(0.0011"～0.0633"/rev)
Cross feeds range	42 kinds, 0.014～0.784mm/rev(0.00033"～0.01837"/rev)
Threads metric pitches	41 kinds, 0.1～14mm
Threads imperial pitches	60 kinds, 2～112T.P.I.
Threads diametral pitches	50 kinds, 4～112DP
Threads module pitches	34 kinds, 0.1～7MP
Tailstock
Quill diameter	60mm
Quill travel	130mm
Quill taper	No.4 Morse
Motor
Main motor power	5.5kW(7.5HP) 3PH
Coolant pump power	0.1kW(1/8HP) 3PH
Dimension and weight
Overall dimension(L×W×H)	220×108×134			275×108×13			325×108×134	220×108×137	275×108×137	325×108×137
Packing size(L×W×H)	225×112×162			280×112×156			330×113×156	225×112×162	280×112×156	330×113×156
Net weight	1580kg			1745kg			1900kg	1645kg	1810kg	1965kg
Gross weight	1845kg			2050kg			2230kg	1910kg	2115kg	2295kg
