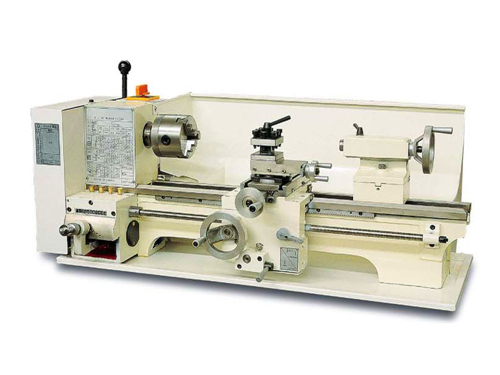

CQ6123B
|
Product Name:
CQ6123B
No. :
 |
|
Model |
CQ6123B |
|
Max.swing dia,over bed |
230mm |
|
Max.swing dia,over cross slide |
156mm |
|
Max.length of workpieces |
500mm |
|
Taper of spindle bore |
MT3 |
|
Hole through spindle |
20mm |
|
Range of spindle speeds |
130-2000rpm(60Hz) 100-1800rpm(50Hz) |
|
Longitudinal feed per revolution of spindle |
0.127mm 0.177mm |
|
Range of inch threads to be cut |
8-56T.P.I |
|
Range of metric threads to be cut |
0.5-3mm |
|
Dia.Of tailstock sleeve |
26mm |
|
Taper of tailstock sleeve bore |
M.T.No.2 |
|
Max.travel of tailstock sleeve |
40mm |
|
Motor horse power |
0.75HP |
|
Motor frequency |
60Hz or 50Hz |
|
Net weight |
95kgs |
|
Floor space dimensions |
950×500mm |
|
Standard and optional accessories |
12 kinds |
|
Packing size (L×W×H)cm |
104×56×52 |
|
Gross weight |
130kgs |
