Product Name:

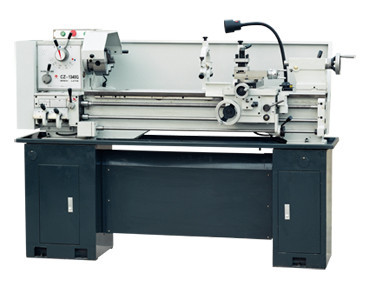

CZ1324G & CZ1337G
No. :
 |
Engineered from high grade castings
V way bed ways induction hardened and ground
Gap bed
Cross and longitudinal interlocking feed, enough safety
Inching switch for test running
Metric/imperial thread available
Precise gear-driven headstock
|
Model |
|
CZ1324G |
CZ1337G |
|
Swing over bed |
mm |
φ330 |
φ350 |
|
Swing over carriage |
mm |
φ195 |
φ215 |
|
Swing over gap |
mm |
φ465 |
φ485 |
|
Width of bed-way |
mm |
182 |
182 |
|
Distance between centers |
mm |
530 |
940 |
|
Taper of spindle |
|
M.T.5 |
M.T.5 |
|
Spindle diameter |
mm |
φ38 |
φ38 |
|
Step of speed |
|
9 |
9 |
|
Range of speed |
rpm |
64~1500 |
64~1500 |
|
Metric thread |
|
15kinds (0.25~7.5mm) 11kinds (0. 5~3.5mm) |
15kinds (0.25~7.5mm) 11kinds (0. 5~3.5mm) |
|
Inch thread |
|
40kinds(4~112T.P.I) 14kinds(7-1/2~48T.P.I) |
40kinds(4~112T.P.I) 14kinds(7-1/2~48T.P.I) |
|
range of feed amount |
mm/r |
0.12~0.42 (0.0047~0.0165) 0.051~0.303(0.002~0.012) |
0.12~0.42 (0.0047~0.0165) 0.051~0.303(0.002~0.012) |
|
Diameter lead screw |
mm |
φ22(7/8) |
φ22(7/8) |
|
Pitch of lead screw |
|
3mm or 8T.P.I |
3mm or 8T.P.I |
|
Saddle travel |
mm |
510 |
850 |
|
Cross travel |
mm |
150 |
150 |
|
Compound travel |
mm |
90 |
90 |
|
Barrel travel |
mm |
100 |
100 |
|
Barrel diameter |
mm |
φ32 |
φ32 |
|
Taper of center |
mm |
M.T.3 |
M.T.3 |
|
Motor power |
Kw |
1.1(1.5HP) |
1.1(1.5HP) |
|
Motor for coolant systems power |
Kw |
0.04(0.055HP) |
0.04(0.055HP) |
|
Machine(L×W×H) |
mm |
1420×750×760 |
1780×750×760 |
|
Stand(left) (L×W×H) |
mm |
400×370×700 |
400×370×700 |
|
Stand (right)(L×W×H) |
mm |
300×370×700 |
300×370×700 |
|
Machine |
Kg |
382/432 |
400/450 |
|
Stand |
Kg |
60/65 |
60/65 |
