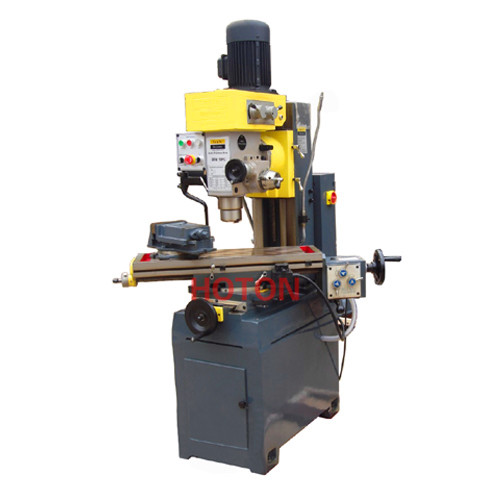

ZX50F ZX50CF
|
Product Name:
ZX50F ZX50CF
No. :
 |
|
specifications |
ZX50CF Machine Tools |
ZX50F Machine Tools |
|
Max. Drilling Dia. (mm) |
50 |
50 |
|
Max. Horizontal Milling Dia. |
100 |
100 |
|
Max. Vertical Milling Dia. |
25 |
25 |
|
Max. Boring Dia. |
120 |
120 |
|
Max. Tapping Dia. |
M16 |
M16 |
|
Spindle Taper |
ISO30, MT4 |
ISO30, MT4 |
|
Spindle Speeds Range |
115-1750(8) |
230-1825(8) |
|
Spindle Travel |
120 |
120 |
|
Table Size (mm) |
800*240 |
800*240 |
|
Table Travel (mm) |
400*230*380 |
400*230*380 |
|
Main Motor Power (KW) |
0.85/1.5 |
0.85/1.5 |
|
N.W./G.W.(Kg) |
500/600 |
500/600 |
