Product Name:

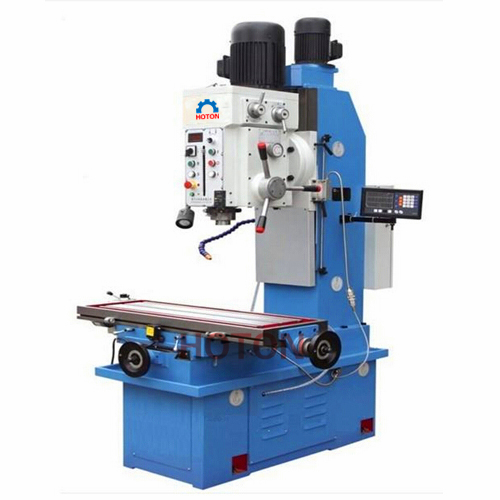

ZX7150A
No. :
 |
1: Spindle electromagnetic clutch feed, and digital drilling depth
2: Increase travel, span, the work surface
3: Enhanced spindle knife device can be configured to unload
4: Configure the table X to stepless feed, optional X, Y, Z coordinate digital
5: The guide surface and the main transmission parts centralized lubrication
6: Spindle box can be plus or minus 45 degrees rotation
7: Headstock Electric lift
8: Cooling and protective devices
9: The electrical control cabinet with PIC main electrical components imported component
With standard accessories:
Drill chuck, Reduction sleeve, Draw bar, some tools
Optional accessories:
Stand base-
Auto power feed
Machine vice
Collets chuck
Work lamp
Coolant system
2 Axis Digital Read out
|
Model |
ZX7150A |
|
Tapping the largest diameter |
45mm |
|
Maximum drilling diameter |
50mm |
|
Maximum milling diameter |
125mm |
|
Distance of spindle center to column |
360mm |
|
Spindle nose to table distance |
Minimum 180mm maximum600mm |
|
Spindle travel |
200mm |
|
Spindle taper hole |
MT4 |
|
Spindle box lift travel |
420mm |
|
Vertical speed of the spindle box |
1250mm/min |
|
Maximum turning angle of the spindle box |
Plus or minus 45 degrees |
|
Spindle drilling speed range |
38-1730r/min |
|
Number of spindle speeds |
12 |
|
Spindle automatic feed rate |
0.1,0.2,0.3mm/r |
|
Spindle automatic feed to the series |
3 Level |
|
Scale loop per revolution feed |
102mm |
|
Workbench X to the feed series |
Stepless |
|
Workbench X to the feed range |
4-480mm/min |
|
Workbench X to the fast-moving speed |
640mm/min |
|
Table area |
350*1000mm |
|
Workbench X / Y to travel |
500*350mm |
|
T-slot table size |
3-14*100mm |
|
Power of main motor |
2.2,2.8 KW (double speed) |
|
Motor power of the price rise |
0.75kw |
|
Cooling pump motor power |
0.09kw |
|
Workbench tool path parameters |
220v,20nm |
|
Weight of machine |
1300kg |
|
Maximum outline size of the machine |
1550*1580*2210mm |
