产品名称:

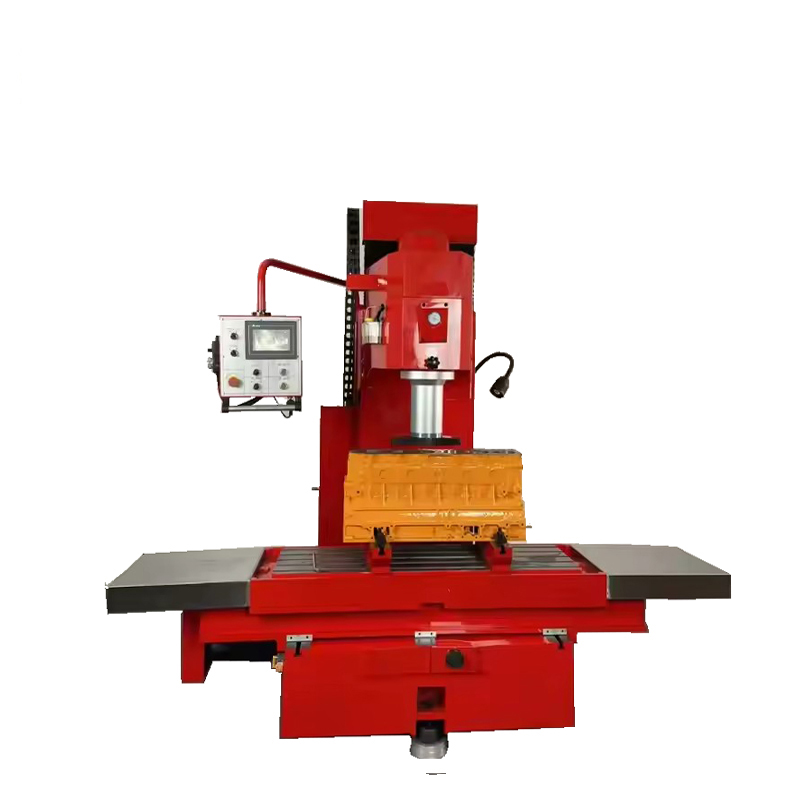

TXM170A TXM200A TXM250A立式精镗铣床
No. :
 |
1.Stepless of spindle turning,feeding.
2.Rotating speed snd feed of spindle is free-setup,automatical returning of spindle can be realized.
3.Longitudinal and cross movement of table
4.Complete set of accessories of boring,drilling & reaming and easy exchange
5.Spindle fast centering device
6.Tool measuring device
7.Boring depth contorl device.
8.Table with digital readout for jig borer machine
Specification:
|
Model |
TXM170A |
TXM200A |
TXM250A |
|
Max. boring diameter |
Φ170 mm |
Φ200 mm |
Φ250 mm |
|
Max. boring depth |
400 mm |
500 mm |
500 mm |
|
Max. grinding area |
400×1000 mm |
||
|
Max. milling area |
400×1000 mm |
||
|
Max. milling & reaming diameter |
Φ30 mm |
||
|
Spindle speed |
120-1200 r/min |
||
|
Feeding of the spindle |
14-900 mm/min |
||
|
Rapid moving speed of the spindle |
1000 mm/min |
||
|
Spindle travel |
700 mm |
||
|
Distance between spindle end face and table |
0-700 mm |
||
|
Distance between spindle axis and carriage vertical plane |
375 mm |
||
|
Longitudinal feed of worktable |
32-1350mm/min |
||
|
Rapid Moving speed of worktable longitu travel |
1350mm/min |
||
|
Longitudinal Travel of worktable |
1500mm |
||
|
Transversal travel of worktable |
200mm |
||
|
Worktable Dimension |
500×1250 mm |
500×1500 mm |
500×1250 mm |
|
Main Motor |
5.5KW |
||
|
Processing roughness(Boring) |
Ra 2.5 |
||
|
Processing roughness(Milling) |
Ra 3.2 |
||
|
Processing roughness(Grinding) |
Ra 0.8 |
||
|
Overall Dimension |
2600×1630×2300mm |
||
|
Packing Dimension |
2230x1870x2270mm |
||
|
Net/Gross Weight |
3300/3600kg |
3500/3800kg |
3500/3800 |
