Product Name:

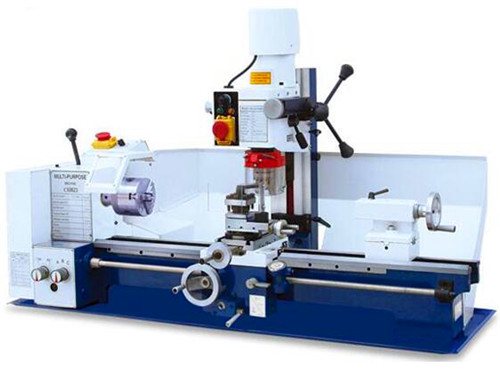

CX0623
No. :
 |
Counter-face turning, milling, boring, drilling, threading and cutting jobs on materials made up of round bar and bar materials
can be performed with this machine.
2, This machine can be used in areas such as mini precision parts processing, sample processing and modeling works.
3,This machine is AC motor/DC motor drived.
4,This feed speed can be adjusted according to the requirement of different work pieces.
|
Model |
CX0623 |
|
Distance between centers |
500/750mm |
|
Swing over bed |
230mm |
|
Swing over cross slide |
135mm |
|
Spindle taper |
MT3 |
|
Tailstock taper |
MT2 |
|
Chuck diameter |
100mm |
|
Spindle bore |
20mm |
|
Cross slide travel |
125mm |
|
Tool slide travel |
48mm |
|
Range of metric threads |
0.5-3mm |
|
Range of imperial threads |
8-56TPI |
|
Spindle accuracy |
0.01mm |
|
Max.Drilling capacity |
16mm |
|
Max.Face mill capacity |
30mm |
|
Max.End millcapacity |
13mm |
|
Spindle stroke for milling |
180mm |
|
Spindle speed |
100-1800RPM/50-3000RPM |
|
Spindle speed for milling |
50-2500RPM |
|
Power of motor |
750W/1200w |
|
Motor power for milling |
550W |
|
Net weight /Gross weight |
135Kg/165Kg 150Kg/180Kg |
|
Packing size |
1055/1300×660×720mm |
