Product Name:

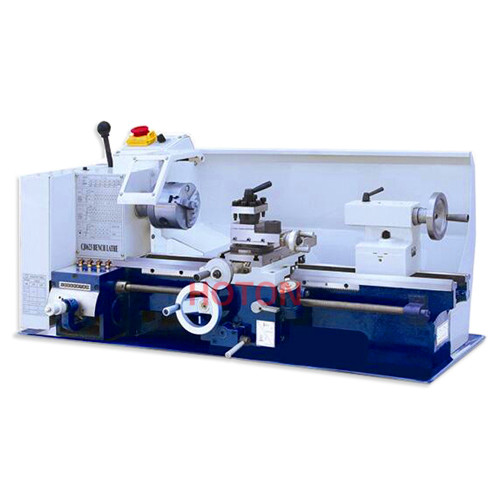

CJ0623
No. :
 |
Counterface turning, drilling,boring,threading, and cutting jobs on materials made
up of round bar and bar materials can be performed with this machine.This
machine can be used in areas such as mini precision parts processing,
sample processing and modeling works.
2,This machine AC motor drived.
3,The spindle speed:100,250,350,500,900,1800RPM(50HZ)120,300,420,600,
1080,2160RPM(60HZ)
4,The feed speed can be adjusted according to the requirements of different workpieces.
|
Model |
CJ0623 |
|
Distance between centers |
500/750mm |
|
Swing over bed |
230mm |
|
Swing over cross slide |
135mm |
|
Spindle taper |
MT3 |
|
Tailstock taper |
MT2 |
|
Chuck diameter |
100mm |
|
Spindle bore |
20mm |
|
Cross slide travel |
125mm |
|
Tool slide travel |
48mm |
|
Range of metric threads |
0.5-3mm |
|
Range of imperial threads |
8-56TPI |
|
Spindle accuracy |
0.01mm |
|
Spindle speed |
100-1800RPM(50Hz)/120-2160RPM(60Hz) |
|
Power of motor |
750W |
|
Voltage/Frequency |
230V/50Hz or 120V/60Hz |
|
Net weight /Gross weight |
105Kg/135Kg 120Kg/150Kg |
|
Packing size |
1055/1300x565×575mm |
