Product Name:
CJ0618A
No. :
 |

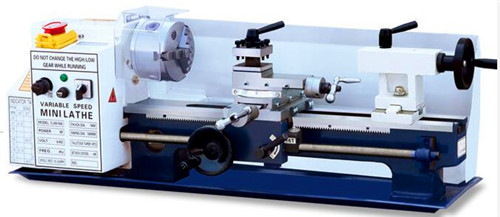

1, This precision mini lathe is designed to perform various types of processing jobs.
Counterface Turning, drilling, threading, and cutting jobs on materials made up of round bar materials
can be performed with this machine. This machine can be used in areas such as mini precision pars Processing,
sample processing and modeling works.
2, This machine is DC motor drived.
3, CJ0618A miniature digital lathe spindle speed digital display, 50-2500RPMSpeed adjustable;
4, The feed speed can be adjusted according to the requirements of different workpieces.
|
Model |
CJ0618A |
|
Distance between centers |
200/300/350mm |
|
Swing over bed |
180mm |
|
Swing over cross slide |
110mm |
|
Spindle taper |
MT3 |
|
Tailstock taper |
MT2 |
|
Chuck diameter |
80mm |
|
Spindle bore |
20mm |
|
Cross slide travel |
65mm |
|
Tool slide travel |
35mm |
|
Range of metric threads |
0.5-2.5mm |
|
Range of imperial threads |
12-52TPI |
|
Spindle accuracy |
0.01mm |
|
Spindle speed |
50-2500/100-2500RPM |
|
Power of motor |
400W/550w |
|
Voltage/Frequency |
230V/50Hz or 120V/60Hz |
|
Net weight |
35Kg/38Kg/40Kg |
|
Gross weight |
38Kg/42Kg/45Kg |
|
Packing size |
660/760/810× 310× 320mm |
