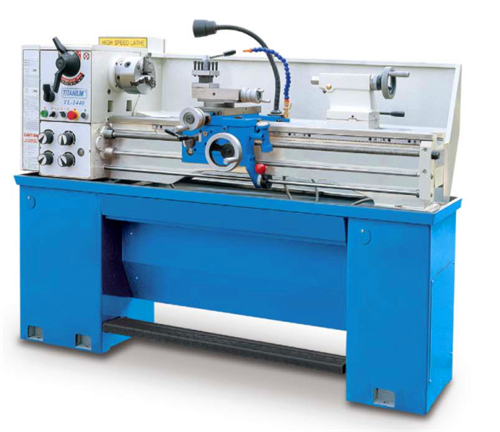

Product Name:
C0636A
No. :
 |
Gapped bed way
Adjustable headstock bearing
Oil-bath lubricated main drive and feed gear
Cast iron bed, double v-guide, hard and ground
Shift gear system to change feed direction
Interlocking feature prevents simutaneous advance of leadscrew and feed shaft
CE standard
|
MODELS |
C0636A×750 |
C0636A×1000 |
|
|
Swing over bed |
360mm(14") |
||
|
Swing over cross slide |
212mm(8-1/6") |
||
|
Swing in gap diameter |
491mm(9-1/3") |
||
|
Swing in length |
210mm(8-1/4") |
||
|
Center height |
166mm(6-1/2") |
||
|
Admits between |
750mm(30") |
1000mm(40") |
|
|
Bed width |
187mm(7-3/8") |
||
|
Bed length |
1363mm(53-2/3") |
1655mm(65-1/8") |
|
|
Spindle bore |
38mm(1-1/2") |
||
|
Spindle nose |
D1-4" or A2-4" |
||
|
Taper in nose |
NO.5 morse |
||
|
Taper in sleeve |
NO.3 morse |
||
|
Speeds number |
8 or 16(pole changeable motor) (optional) |
||
|
Speeds range |
70-2000r.p.m.or 35-2000r.p.m.(2 speed motor) |
||
|
Cross slide travel |
118mm(4-5/16") |
||
|
Compound rest travel |
68mm(2-11/16") |
||
|
Lead screw thread |
8T.P.I. or 3mm pitch |
||
|
Feed rod diameter |
19mm(3/4") |
||
|
Cutting tool max section |
16mm×16mm(5/8"×5/8") |
||
|
Threads imperial pitches |
36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I) |
||
|
Threads metric pitches |
28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch) |
||
|
Threads diametral pitches |
36 Nos.8-112 D.P |
||
|
Threads module pitches |
22 Nos.0.2-3 M.P. |
||
|
Longitudinal feeds imperial |
36 Nos.0.0019-0.0273"/Rev.or |
||
|
Longitudinal feeds metric |
36 Nos.0.050-0.696"/Rev.or |
||
|
Cross feeds imperial |
36 Nos.0.0006-0.0094"/Rev.or |
||
|
Cross feeds metric |
36 Nos.0.013-0.188"/Rev.or |
||
|
Quill diameter |
32mm(1-1/4")(NO.3M.T.) |
||
|
or (optional) |
|||
|
Quill travel |
100mm(3-15/16")(NO.3M.T.) |
||
|
or (optional) |
|||
|
Quill taper |
NO.3 morse |
||
|
For main motor |
1.5KW 3PH or 1PH |
||
