Variable Speed Drill Press ZJW5125
|
Product Name:

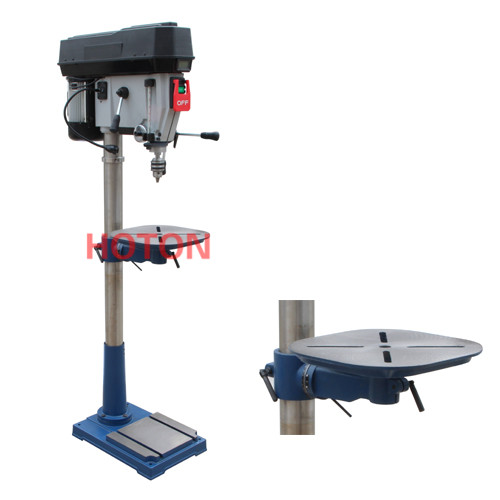

Variable Speed Drill Press ZJW5125
No. :
 |
DRILL PRESS WITH VARIABLE SPEED
Variable speed drill press enables to operate easier
Complete with speed readout.
Spindle with precision ball bearings.
Belt guard with switch.
Casting iron handle with soft grip for long life and perfect operation.
Complete with depth stop.
Quiet running and wide constant torque progression.
Tilting and rotating table
|
MODEL |
ZJW5120/2 |
ZJW5125/2 |
|
Motor power |
900W |
1100W |
|
Drilling Cap. |
16mm |
16mm |
|
Spindle Travel |
115mm |
152mm |
|
Spindle Taper |
MT#2 |
MT#2 |
|
Class of Speed |
variable |
variable |
|
Speed 50/60HZ |
500-2000/600-2400rpm |
|
|
Swing |
380mm |
450mm |
|
Table Size |
305x305mm |
355x355mm |
|
Base Size |
510x350mm |
510x350mm |
|
Column Dia. |
Ø72 |
Ø80 |
|
Total Height |
1650mm |
1750mm |
|
N/G weight |
100/90kgs |
108/98kgs |
|
Packing Size |
1430x660x330mm |
1430x660x330mm |
