Product Name:

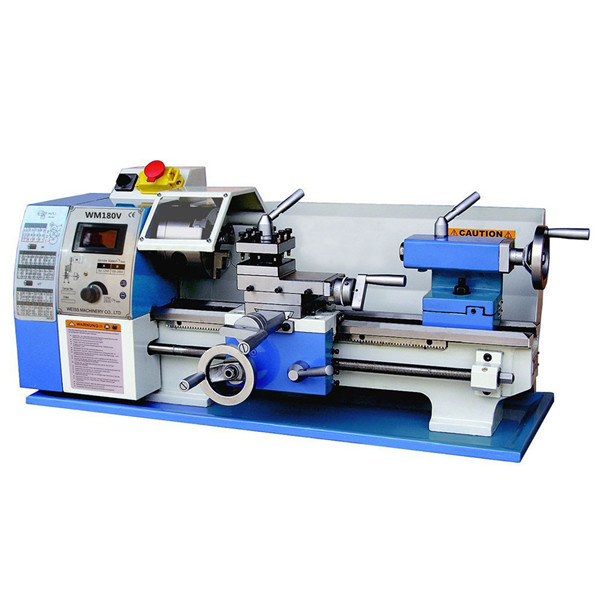

WM180V
No. :
 |
1. widely used, simple operation, and a wide range of processing
2. Guarantee the concentricity of the spindle is less than 0.009mm
3.Chuck run out accuracy of less than 0.05mm .
4.Strong power, maintenance-free DC motor .
5.From 50-1250rpm spindle speed 100-2500rpm
6.After quenching and precision grinding of cast iron bed .
8. High precision, quenching spindle .
9.European standard safety magnetic switch 9 cost, accurate and stable value .
|
Model |
WM180V |
|
Max. swing over bed |
180mm |
|
Distance between centers |
300mm |
|
Spindle bore |
21mm |
|
Taper of Spindle bore |
MT3 |
|
Range of Spindle speeds |
50-2500rpm |
|
Taper of tailstock quill |
MT2 |
|
Metric threads can be cut |
0.5-3mm |
|
Inch threads can be cut |
10-44TPI |
|
Max travel of cross slide |
75mm |
|
Bed of width |
100mm |
|
Travel of Tailstock sleeve |
60mm |
|
Motor power |
650W |
|
GW/NW |
75/60KG |
|
Package size( L*W*H ) |
780*480*420mm |
