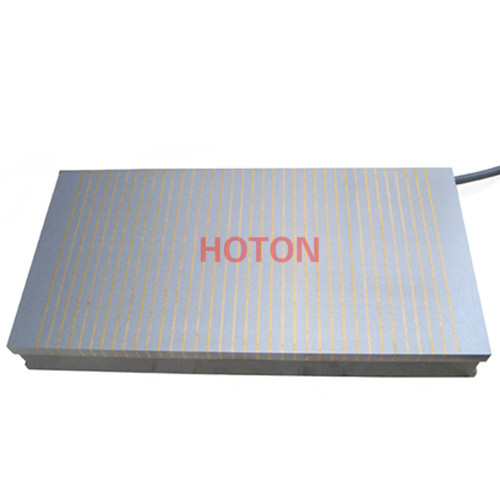

X11 Series Normal Electromagnetic Chuck
No. :
 |
1.X11 normal rectangular electromagnetic chuck is a type of magnetic workholding device for surface grinder machine and milling machine.
2.Used for sucking magnetic conductivity workpieces to achive fixed position and processing.
3.The features of this series: suction force well-distributed, positioning reliable, easy to operate.
4. Can be installed in surface grinder machine or milling machine directly, it is a kind of ideal magnetic fixture
5. It’s suitable for processing medium strength grinding, the suction force is≥100N/cm².
Quality Standards: ISO9001-2000 quality management system demonstration .
|

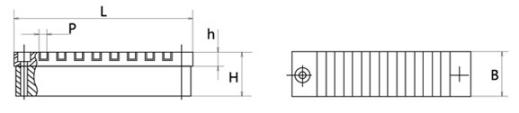

Type |
Dimensions(mm) |
Pole pitch (mm) |
Panel Height (mm) |
Power (W) |
Net weight (kg) |
|
X11 200×560 |
560×200×105 |
22(18+4) |
30 |
110 |
60 |
|
X11 200×630 |
630×200×105 |
22(18+4) |
30 |
120 |
65 |
|
X11 300×680 |
680×300×108 |
22(18+4) |
30 |
154 |
115 |
|
X11 300×800 |
800×300×108 |
22(18+4) |
30 |
176 |
130 |
|
X11 300×1000 |
1000×300×108 |
22(18+4) |
30 |
154 |
155 |
|
X11 320×800 |
800×320×108 |
22(18+4) |
30 |
198 |
140 |
|
X11 320×1000 |
1000×300×108 |
22(18+4) |
30 |
176 |
175 |
|
X11 320×1250 |
1250×320×108 |
22(18+4) |
30 |
275 |
220 |
|
X11 320×1600 |
1600×320×110 |
22(18+4) |
30 |
275 |
285 |
|
X11 320×2000 |
2000×320×110 |
22(18+4) |
30 |
308 |
360 |
|
X11 400×800 |
800×400×108 |
22(18+4) |
30 |
165 |
175 |
|
X11 400×1000 |
1000×400×108 |
22(18+4) |
30 |
242 |
230 |
|
X11 400×1600 |
1600×400×110 |
22(18+4) |
30 |
429 |
355 |
|
X11 400×2000 |
2000×400×110 |
22(18+4) |
30 |
550 |
450 |
|
X11 500×630 |
630×500×108 |
22(18+4) |
30 |
165 |
170 |
|
X11 500×800 |
800×500×108 |
22(18+4) |
30 |
242 |
220 |
|
X11 500×1000 |
1000×500×108 |
22(18+4) |
30 |
275 |
275 |
|
X11 500×1500 |
1500×500×110 |
22(18+4) |
30 |
440 |
415 |
|
X11 500×1600 |
1600×500×110 |
22(18+4) |
30 |
440 |
450 |
|
X11 500×2000 |
2000×500×110 |
22(18+4) |
30 |
516 |
560 |
|
X11 600×1000 |
1000×600×108 |
22(18+4) |
30 |
330 |
335 |
|
X11 600×1500 |
1500×600×110 |
22(18+4) |
30 |
638 |
500 |
|
X11 600×1600 |
1600×600×110 |
22(18+4) |
30 |
660 |
530 |
|
X11 600×2000 |
2000×600×110 |
22(18+4) |
30 |
748 |
670 |
|
X11 630×1000 |
1000×630×110 |
22(18+4) |
30 |
374 |
410 |
|
X11 630×1500 |
1500×630×110 |
22(18+4) |
30 |
550 |
690 |
|
X11 630×1600 |
1600×630×110 |
22(18+4) |
30 |
584 |
710 |
|
X11 800×800 |
800×800×110 |
22(18+4) |
30 |
385 |
480 |
|
X11 800×1000 |
1000×800×110 |
22(18+4) |
30 |
495 |
570 |
|
X11 800×1500 |
1500×800×110 |
22(18+4) |
30 |
770 |
820 |
