Product Name:

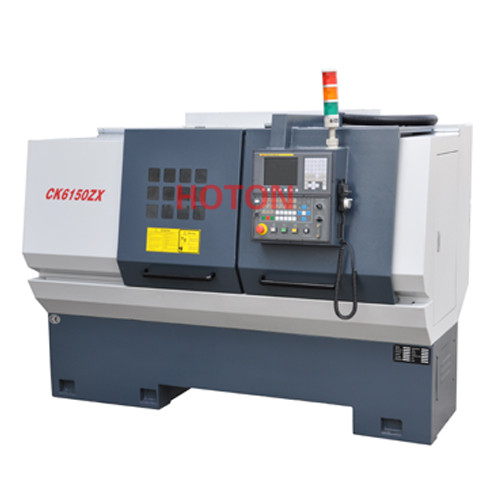

CK6140ZX CK6146ZX CK6150ZX
No. :
 |
Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
The post is located on precision contrite gears with a high repeated positioning accuracy.
Both chuck and tailstock are supplied with hydraulic or manual type.
The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
The spindle bore size is Ø 80mm. The spindle system is high in the rigidity and accuracy.
SPECIFICATIONS:
|
ITEMS |
CK6140ZX |
CK6146ZX |
CK6150ZX |
|
Over bed |
Ø400mm |
Ø460mm |
Ø500mm |
|
Over carriage |
Ø210/Ø165mm (Gang tools) |
Ø240/Ø205mm (Gang tools) |
Ø280/Ø245mm (Gang tools) |
|
Maximum turned length |
750/1000/1500mm |
||
|
Max. turning length |
600/850/1350 mm |
||
|
Spindle nose |
D8 |
||
|
Spindle bore |
Ø80mm |
||
|
Cone hole diameter and taper of spindle hole |
MT.No7 |
||
|
Steps of spindle speed (Manual) |
Variable |
||
|
Range of spindle speed |
100~2000r/min |
||
|
Rapid feed for Axis Z |
10m/min |
||
|
Rapid feed for Axis X |
8 m/min |
||
|
Max. travel of Axis Z |
710/960/1460 mm |
||
|
Max. travel of Axis X |
250/330mm(Gang tools) |
||
|
Min. input |
0.001mm |
||
|
Tool post stations |
4-ways or 6-ways or gang tools |
||
|
Tool cross section |
25×25 mm |
||
|
External diameter |
Ø75mm |
||
|
Taper of bore |
MT.No.4 |
MT.No.5 |
|
|
Max. Traverse |
130mm |
||
|
Power of main motor |
5.5KW(Extra 7.5KW) |
||
|
Power of cooling pump |
75W |
||
|
Overall dimensions(L×W×H) |
2060/2310/2790×1180×1500mm |
||
|
Net weight |
2100,2250,2800Kg |
2200,2350,2900kg |
|
