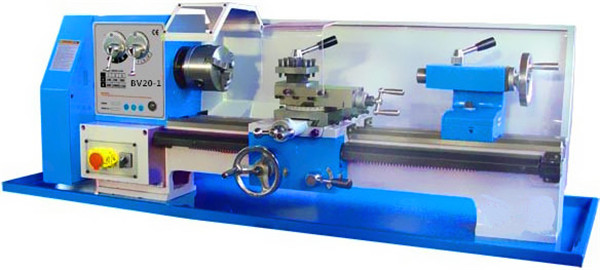

BV20-1&BV20L-1
|
Product Name:
BV20-1&BV20L-1
No. :
 |
Most economical ,widely useful hobby lathe
V-way bed is precision ground
Spindle is supported by precision tapered bearing
Headstock is constantly oiled during operating
Power longitudinal feed allows threading
Adjustable gibs for slideways
Equipped with leadscrew ,chuck and threading functions
Tailstock may be off set for turning tappers
|
Model
|
BV20-1/BV20L-1
|
|
Distance between centers
|
350/520mm
|
|
Swing over bed
|
200mm
|
|
Swing over cross slide
|
115mm
|
|
Taper of spindle bore
|
M13
|
|
Spindle bore
|
20mm
|
|
Number of spindle speeds
|
6
|
|
Range of spindle speeds
|
140-1710rpm
|
|
Range of longitudinal feeds
|
0.05-0.15mm/r
|
|
Range of inch threads
|
5-32T.P.I
|
|
Range of metric threads
|
0.4-3mm
|
|
Tailstock quill travel
|
35mm
|
|
Taper of tailstock quill
|
M12
|
|
Motor
|
0.55kw
|
|
Packing size
|
1015/1200x500x550mm
|
|
Net weight
|
105/110kgs
|
