Product Name:

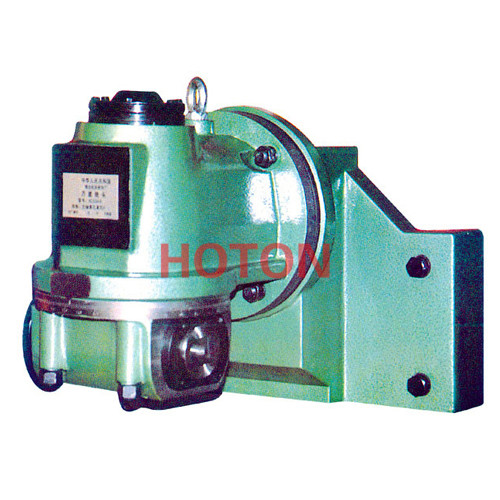

XC Series Universal Milling Head
No. :
 |
The spindle of universal milling head can be turned round between two vertical surface .
It is not only can complete vertical milling ,horizontal milling ,but also complete milling cutting in polyhedral ,
multi-edges,multi-flutes during chuck on one time ,it is suitable for single ,small batch and maintenance processing.
|
Items Model |
Taper of spindle bore |
Rotating angles |
Matched type with milling machine |
Ratio with milling machine |
Taper with spindle of milling machine |
|
|
Horizontal |
vertical |
|||||
|
XC624A |
Morse 4 |
360° |
360° |
X62 X62W X6132 |
1:1 |
7:24 (φ69.85) |
|
XC624C |
X6132A |
|||||
|
XC634A |
X63 X63W B1400W |
|||||
|
XC634C |
X6040 X6140 |
|||||
|
XC63T4A |
X63T X63WT |
|||||
|

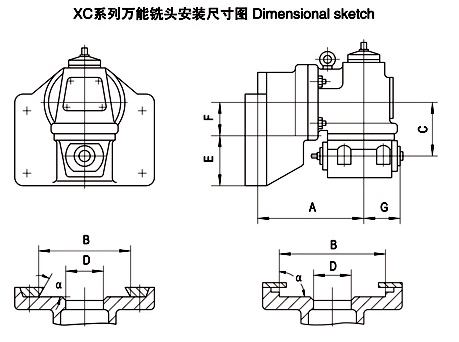

Items Model |
A |
B |
C |
D |
E |
F |
G |
a |
NW kg |
Case dimension |
|
XC624A |
340 |
320 |
140 |
φ165 |
133 |
112 |
110 |
55° |
147 |
575x520x480 |
|
XC624C |
340 |
φ170 |
90° |
150 |
575x530x480 |
|||||
|
XC634A |
350 |
400 |
φ165 |
55° |
154 |
585x600x480 |
||||
|
XC634C |
φ170 |
90° |
162 |
595x605x480 |
||||||
|
XC63T4A |
360 |
φ210 |
50° |
152 |
585x575x480 |
