JYP260

Product Name:

JYP260

No. :

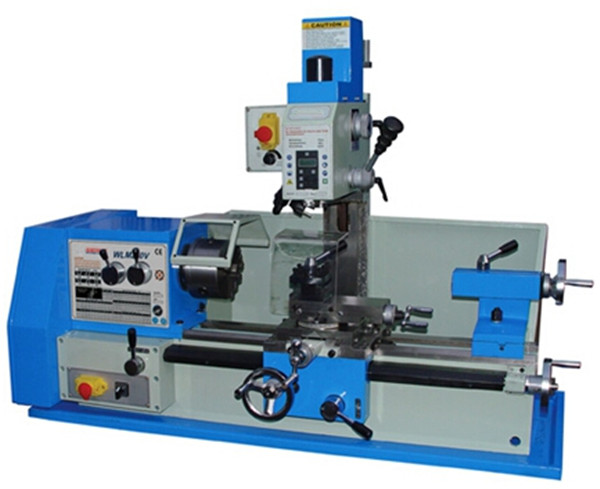

Most popular ,widely useful combination machine
V-way bed is precision ground

Gear head enables to change speed quickly

MT4 spindle hole gets more capacity
Spindle is supported by precision bearing

T-slotted cross slide

Power longitudinal feed allows threading

Adjustable gids for slideways
Top design of gearbox gets more function

Mill head can be tilted ± 90° .
Tolerance test certificate, test flow chart included.

Model	JYP260
Distance between centers	450/ 700mm
Swing over bed	250mm
Taper of spindle bore	MT4
Spindle bore	26mm
Step of spindle speeds	6
Range of spindle speeds	115-1620rpm
Range of inch threads	8-56T.P.I
Range of metric threads	0.4 -3.5mm
Travel of cross slidel	140mm
Taper of tailstock quill	MT3
Motor	750W
Taper of spindle bore	MT2
Spindle stroke	50mm
Spindle speed	50-2250rpm
Max.distance spindle to table	280mm
Max.distance spindle to columm	170mm
Head tilt	±9 0 °
Motor	500W
Packing size	1270/1510 × 670 × 1100mm
Net weight	180kg / 200kg
