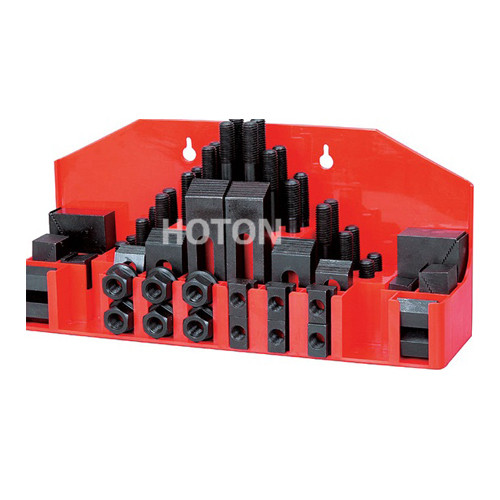

58 PCS Clamping Kit
|
Product Name:
58 PCS Clamping Kit
No. :
 |
58 PCS Clamping Kit
Heat treated steel black oxide finish
Hardness:studs 25°，nut and step clamp step block 35-38°
Apply for fixing each kind of working piece on machine table
High Precision
Each sets contains:
6 T-slot nuts
6 flange nuts.
4 coupling nuts.
6 pair step blocks
6 serrated end clamps
24 studs, 4 each of 3", 4", 5", 6", 7", 8"
1 Delux holder
|
Metric |
inch |
Table Slot |
Stud Size |
G.W. |
GB |
Packing(mm) |
|
M 8 |
5/16 |
10 |
8-1.25P |
7 |
- |
318x116x210 |
|
M10 |
3/8 |
12 |
10-1.25P |
9 |
3/8-16 |
318x116x210 |
|
M12 |
1/2-12 |
14 |
12-1.75P |
10 |
1/2-12 |
368x108x218 |
|
M14 |
/ |
16 |
14-2.0P |
11 |
- |
388x128x218 |
|
M16 |
5/8 |
18 |
16-2.0P |
13 |
5/8-11 |
500x130x228 |
|
M18 |
3/4 |
20 |
18-2.5P |
25 |
- |
370x160x300 |
|
M20 |
3/4-10 |
22 |
20-2.5P |
26 |
3/4-10 |
370x160x300 |
|
M22 |
7/8 |
24 |
24-3.0P |
30 |
7/8-9 |
470x230x360 |
