Product Name:

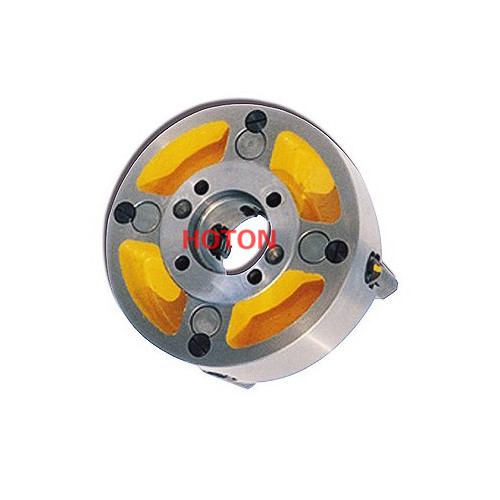

K72 series Four-jaw independent chuck A type
No. :
 |
K72 series Four-jaw independent chuck A type
K72 series Four-jaw independent chuck adopts short cylinder and short circular cone shape,
Short circular cone shape can be subdivided into two types according to the way of joining with
the rod of machine tool:Type A(joined with screw),Type C(bolt locking joint),Type D(pull rod,cam locking joint).
|
Model |
short-taper No |
D1 |
D2 |
D3 |
H |
H1 |
h |
h1 |
h2 |
d1 |
Z-d |
|
K72160 |
4 |
63.513 |
82.6 |
45 |
93 |
65 |
13 |
10 |
6.5 |
14.7 |
4-M10 |
|
K72200 |
56 |
107 |
75 |
||||||||
|
K72250 |
4 |
63.513 |
82.6 |
61 |
120 |
80 |
13 |
10 |
6.5 |
14.7 |
4-M10 |
|
K72315 |
4 |
63.513 |
82.6 |
61 |
138 |
90 |
- |
10 |
6.5 |
14.7 |
4-M10 |
|
K72320 |
|||||||||||
|
K72350 |
|||||||||||
|
K72200 |
6 |
106.375 |
133.4 |
56 |
107 |
75 |
16 |
13 |
6.5 |
19.5 |
4-M12 |
|
K72250 |
6 |
106.375 |
133.4 |
75 |
120 |
80 |
16 |
13 |
6.5 |
19.5 |
4-M12 |
|
K72315 |
6 |
106.375 |
133.4 |
95 |
138 |
90 |
16 |
13 |
6.5 |
19.5 |
4-M12 |
|
K72320 |
|||||||||||
|
K72350 |
|||||||||||
|
K72400 |
6 |
106.375 |
133.4 |
95 |
143 |
95 |
16 |
13 |
6.5 |
19.5 |
4-M12 |
|
K72500 |
6 |
106.375 |
133.4 |
103 |
160 |
105 |
- |
13 |
6.5 |
19.5 |
4-M12 |
|
K72520 |
8 |
139.719 |
171.4 |
75 |
120 |
80 |
18 |
14 |
8 |
24.2 |
4-M16 |
|
K72315 |
8 |
139.719 |
171.4 |
95 |
138 |
90 |
18 |
14 |
8 |
24.2 |
4-M16 |
|
K72320 |
|||||||||||
|
K72350 |
|||||||||||
|
K72400 |
8 |
139.719 |
171.4 |
125 |
143 |
95 |
18 |
14 |
8 |
24.2 |
4-M16 |
|
K72500 |
8 |
139.719 |
171.4 |
136 |
160 |
105 |
- |
14 |
8 |
24.2 |
4-M16 |
|
K72315/K72320 |
11 |
196.869 |
235 |
95 |
138 |
90 |
20 |
16 |
10 |
29.4 |
4-M20 |
|
K72350/K72400 |
125 |
143 |
95 |
||||||||
|
K72500/K72520 |
11 |
196.869 |
235 |
160 |
160 |
105 |
20 |
16 |
10 |
29.4 |
4-M20 |
|
K72630 |
180 |
180 |
115 |
||||||||
|
K72500 |
15 |
285.775 |
330.2 |
160 |
160 |
105 |
21 |
16 |
10 |
35.7 |
4-M22 |
|
K72630 |
180 |
180 |
115 |
