Product Name:

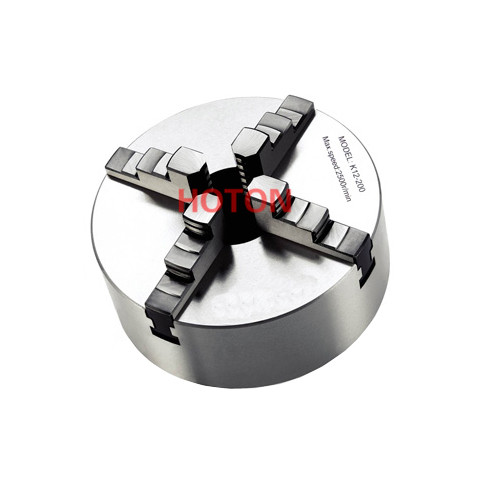

K12 series Four-jaw Self-centering chuck
No. :
 |
K12 series Four-jaw Self-centering chuck
FOUR JAW SELF CENTRING CHUCK
FOUR JAW SELF CENTRING CHUCK is suitable for batch process of square,
eight-square prism accesspries and is self centering
|
Size D |
D1 |
D2 |
D3 |
H |
H1 |
h |
Z-d |
|
K1280 |
55 |
66 |
16 |
66 |
50 |
3.5 |
3-M6 |
|
K12100 |
72 |
84 |
22 |
74.5 |
55 |
3.5 |
3-M8 |
|
K12125 |
95 |
108 |
30 |
84 |
58 |
4 |
3-M8 |
|
K12130 |
100 |
115 |
30 |
86 |
60 |
3.5 |
3-M8 |
|
K12160 |
130 |
142 |
40 |
95 |
65 |
5 |
3-M8 |
|
K12160A |
|
142 |
40 |
109 |
65 |
5 |
3-M8 |
|
K12165 |
130 |
145 |
40 |
96.5 |
66.5 |
4.5 |
3-M8 |
|
K12165A |
145 |
40 |
110.5 |
66.5 |
4.5 |
3-M8 |
|
|
K12190 |
155 |
172 |
55 |
109 |
75 |
5 |
3-M10 |
|
K12190A |
|
172 |
55 |
122 |
75 |
5 |
3-M10 |
|
K12200 |
165 |
180 |
65 |
109 |
75 |
5 |
3-M10 |
|
K12200A |
65 |
122 |
75 |
||||
|
K12250 |
206 |
226 |
80 |
120 |
80 |
5 |
3-M12 |
|
K12250A |
226 |
80 |
136 |
80 |
5 |
3-M12 |
|
|
K12315 |
260 |
285 |
100 |
142.5 |
90 |
6 |
3-M16 |
|
K12315A |
285 |
100 |
155.5 |
90 |
6 |
3-M16 |
|
|
K12320 |
270 |
290 |
100 |
142.5 |
90 |
6 |
3-M16 |
|
K12320A |
290 |
100 |
155.5 |
90 |
6 |
3-M16 |
|
|
K12325 |
272 |
296 |
100 |
142.5 |
90 |
6 |
3-M16 |
|
K12325A |
296 |
100 |
155.5 |
90 |
6 |
3-M16 |
|
|
K12380 |
325 |
350 |
130 |
155.5 |
100 |
6 |
3-M16 |
|
K12380A |
350 |
130 |
171.5 |
100 |
6 |
3-M16 |
|
|
K12400 |
340 |
368 |
130 |
155.5 |
100 |
6 |
3-M16 |
|
K12400A |
368 |
130 |
171.5 |
100 |
6 |
3-M16 |
|
|
K12500A |
440 |
465 |
200 |
203 |
115 |
6 |
6-M16 |
|
K12630A |
560 |
595 |
260 |
218 |
130 |
7 |
6-M16 |
|
K12800A |
710 |
760 |
385 |
249 |
148 |
8 |
6-M20 |
|
K121000A |
910 |
950 |
460 |
266 |
165 |
8 |
6-M24 |
