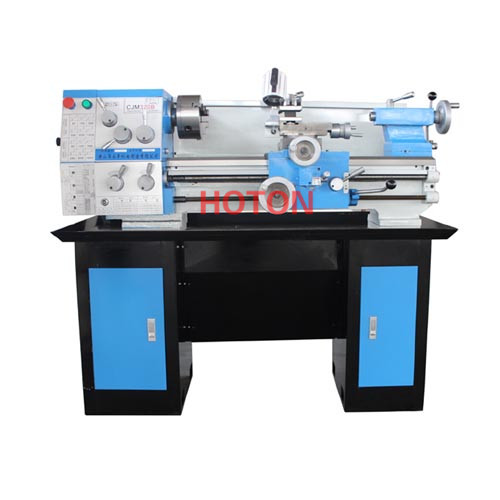

CJM320

Product Name:

CJM320

No. :

1.The machine adopts full gear drive, double rod operation, no need to replace the hanging
wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
2.Vertical and horizontal feed adopts interlocking mechanism, safety is good.
3.The machine tool uses two mountains and two moment rail, high frequency quenching,
high accuracy, high rigidity, good abrasion resistance.

Model	CJM320
Max swing bed	320mm
Max swing slide over bed	200mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speed	12; 60-1600rpm
Cross feed	0.045-0.6mm/r
Longitudinal feed	0.1-1.4mm/r
Max range of tailstock quill	80mm
Taper of tailstocks quill	Mt3
motor	950W
GW/NW	430kg/350kg
Package size	1470x770x1470mm
