XK7130A
|
Product Name:
XK7130A
No. :
 |
FEATURES:

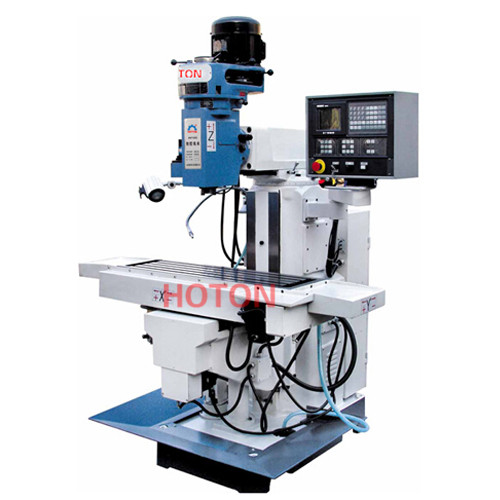

This CNC Milling Machine can be used for milling, boring, drilling. The machine is suitable to perform
various procedures such as plane surface, inclined surface, slot, gears, spline and grooves. It's therefore
to meet maintenance and manufacture in various enterprises, especially for manufacturing tools, fixtures and dies, etc.
|
Model |
Unit |
XK7130A |
|
X-axis travel |
mm |
460 |
|
Y-axis travel |
mm |
210 |
|
Z-axis travel |
mm |
360 |
|
Spindle nose to table |
mm |
120-480 |
|
Spindle center to column guide-way face |
mm |
200-500 |
|
High speed feeding of X,Y axis |
mm/min |
3000 |
|
Feeding speed |
mm/min |
1-2000 |
|
Size of working table |
mm |
1000×280 |
|
Max.loading capacity of rotary table |
mm |
100 |
|
T-slot NO./width/distance of rotary table |
|
3×14×63 |
|
Spindle speed range/step |
r/min |
66-4540/16steps |
|
Main motor rated power |
Kw |
2.2(3HP) |
|
Spindle hole taper |
|
7:24 ISO30 |
|
N.W |
KG |
1300 |
|
Overall dimension |
mm |
1540×1340×2130 |
