Product Name:

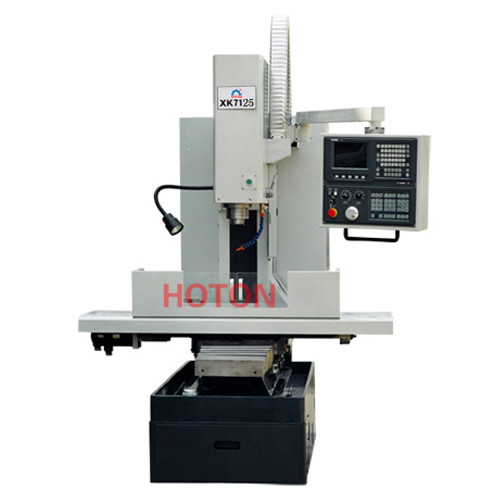

XK7125
No. :
 |
2. Rectangular guide-way with plastic-sticking, high rigidity, high stability and strong support.
3. Column and guide way is ground precisely with high precision
4. Spindle is equipped with tool-hit cylinder to make tool released and clamped pneumatically.
Tool-change is more safely and quickly.
5. CNC control system could be adapted by step motor or servo motor, providing good cost-effective
scheme to customers.
|
ITEM |
XK7125 |
|
X-Axis travel |
535mm |
|
Y-Axis travel |
320mm |
|
Z-Axis travel |
375mm |
|
Distance from Spindle nose to worktable surface |
25-425mm |
|
Distance from center of spindle to surface of column ram |
345mm |
|
T slot (width x no.) |
16mmX3 |
|
Worktable size |
1000X250mm |
|
Max.loading of worktable |
120Kg |
|
Power of spindle motor |
1.5/2.2KW |
|
Spindle speed |
4000/(or 8000/12000) |
|
Spindle taper |
BT30 |
|
Spindle bearing |
P4 |
|
Rapid traverse speed of 3 axes |
X /Y:15m/min(servo) |
|
Z:15m/min(servo) |
|
|
Cutting feeding rate |
0-2000mm/min |
|
Min.set unit & moving unit |
0.001mm |
|
Pitch of X/Y axes |
6mm |
|
Pitch of Z axis |
6mm |
|
Positioning accuracy (300mm) |
±0.008 |
|
Repeat accuracy (300mm) |
±0.005 |
|
Changing way of tools |
Manual |
|
Tool spec. max.dia. (neighboring Tool) x weight x length |
φ60mmX3.5KgX175 |
|
Machine weight |
1700kg |
|
Air pressure |
0.6MPa |
|
Power of cooling pump for cutting |
370W |
|
Overall size |
1516X1764X1708mm |
