ETB-25 ETB-40

Product Name:

ETB-25 ETB-40

No. :

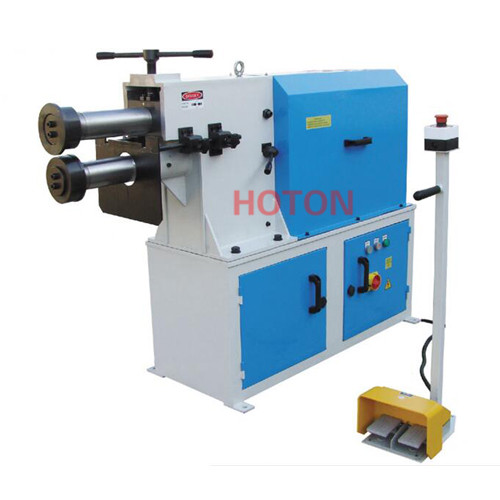

1. The Bead bending machine makes swaged plate, connection and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes.

2. The rigidity of the plates, pipes or metal components is strengthened.

3. Steel welded construction frame

4. Adjustable idle roller

5. Steel shaft with bronze bushings

6. Reduction motor with brake system

7. Movement of rollers with foot pedal

8. Complete with stand

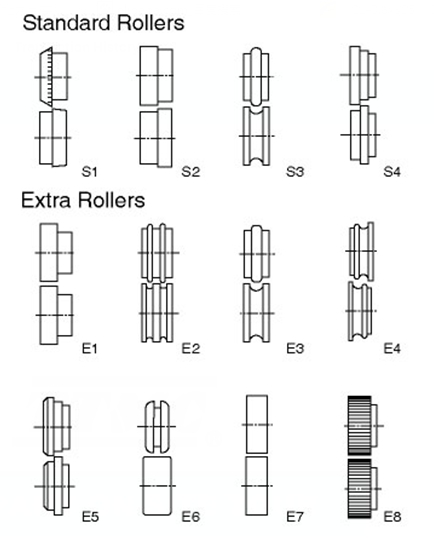

9. 4 sets standard rollers

Model	ETB-25	ETB-40
Thickness max	2.5mm/12Ga	4mm/8Ga
Cylinder length	120mm/ 4-3/4”	165mm / 6-1/2”
Throat depth	280mm / 11”	300mm / 12”
Cylinder speed	20rpm	15.3rpm
Motor power	1.5kW / 2HP	2.2kW / 3HP
Net weight	235kg/518lb	341kg/752lb
Packing size (cm)	147x58x135	165x58x140
