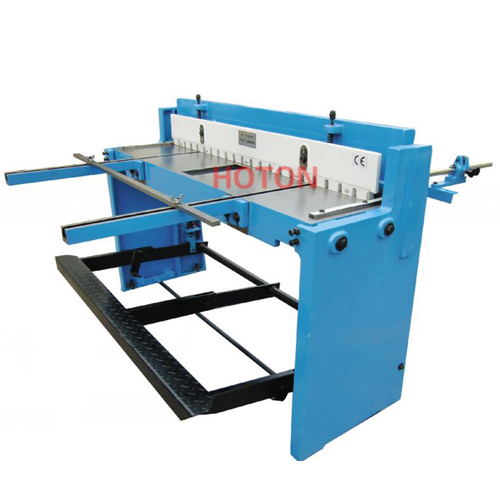

Foot Shear Q01-1.0x1000 Q01-1.5x1320 Q01-2.0x1000 Q01-1.5x1320A

Product Name:

Foot Shear Q01-1.0x1000 Q01-1.5x1320 Q01-2.0x1000 Q01-1.5x1320A

No. :

Features:

The Manual shear is with both front and back gauge

With heavier weight, good stability

High carbon and chrome steel blade

A fully casting structure, not easy deformation

Used for mild steel aluminum copper, brass zinc plastic and leads

It features convenient operation and high efficiency.

Model	Q01-1.0x1000	Q01-1.5X1320	Q01-2X1000	Q01-2X1000A	Q01-1.5X1320A
Width (mm)	1000	1320	1000	1000	1320
Max. Shearing thickness (mm)	1.0	1.5	2.0	2.0	1.5
Back gauge range (mm)	0-700	0-700	0-700	0-800	0-800
Packing size (cm)	140x76x115	168x76x115	140x76x115	140x76x115	168x76x115
N.W./G.W. (kg)	365/410	491/545	405/450	355/400	430/500
