PBB1020/2A PBB1270/2A PBB1520/1.5A
|
Product Name:

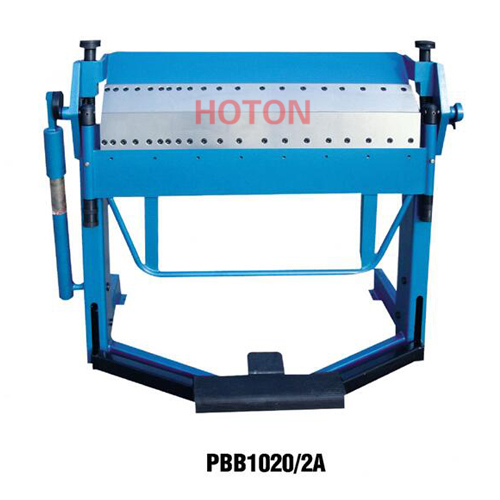

PBB1020/2A PBB1270/2A PBB1520/1.5A
No. :
 |
1. With food control. It is easy for operation and relax hands for adjusting the material.
2. They have the function of air spring which can be installed inside the arm(Optional).
3. The press blade and folding blade are segment structure.
|
Model |
PBB1020/2A |
PBB1270/2A |
PBB1520/1.5A |
PBB1020/3SH |
PBB1270/3SH |
|
Max. working length(mm) |
1020 |
1270 |
1520 |
1020 |
1270 |
|
Max. sheet thickness(mm) |
2.0 |
2.0 |
1.5 |
2.0 |
1.5 |
|
Max.clamping bar lift(mm) |
47 |
47 |
47 |
45 |
45 |
|
Folding angle |
135° |
135° |
135° |
150° |
150° |
|
Packing size(cm) |
146x62x127 |
170x71x127 |
196x71x130 |
142x59x142 |
167x66x142 |
|
N.W./G.W.(kg) |
320/350 |
350/385 |
395/466 |
430/470 |
465/510 |
