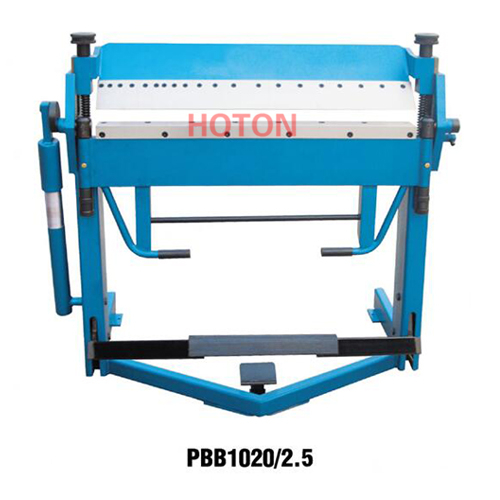

PBB1020/2.5 PBB1270/2 PBB1520/1.5

Product Name:

PBB1020/2.5 PBB1270/2 PBB1520/1.5

No. :

1.For formed component bending.

2.A fully welded structure, and compact high quality engineering, ensure minimum maintenance,
together with simple and safe operation.

3.Have the function of air spring which can be installed inside the arm(Optional).

4.Adjustable bending angle stop with scale up to 135 °

5.With foot control. It is easy for operation and relax hands.

6.Segmented top beam tools.

Model	PBB1020/2.5	PBB1270/2	PBB1520/1.5
Max.working length(mm)	1020	1270	1520
Max.sheet thickness(mm)	2.5	2.0	1.5
Max.clamping bar lift(mm)	47	47	47
Folding angle	0-135°	0-135°	0-135°
Packing size(mm)	1460x620x1270	1700x710x1270	1960x710x1300
N.W./G.W.(kg)	285/320	320/360	385/456
