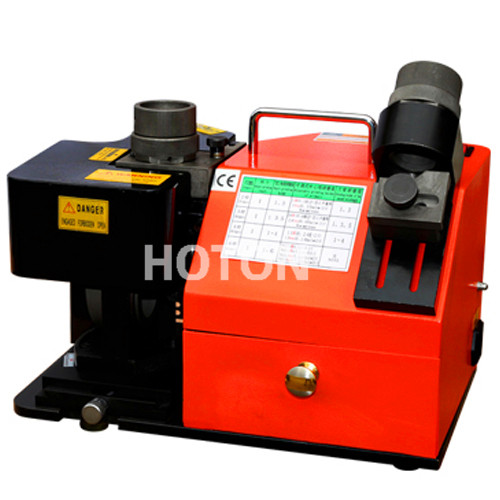

GD-330

Product Name:

GD-330

No. :

1.One CBN grinding wheel of 13~30mm 2flutes,3flutes,4flutes and 6flutes end mills

2.Easy to operate, unskilled workers can learn to sharpen the end mill quickly.

3.Economical price, grinding fast and high accuracy. Diamond grinding wheel.

4.Low maintenance, good grinding result. Motor is electronic and powerful, frequency stably,extra motor life.

5.Quickly sharpen standard end mill into high-performance, self centering split point mill

6.Outstanding value, will pay for itself in just a few months

Model:	GD-330
Diameter:	13-30
Power:	220V/450W
Speed:	4500rpm
Point angle:	0-5
Dimension:	42x30x31cm
Weight:	30kg
Standard Equipment:	One piece grinding wheel :CBN(for HSS)1
	Six collets:13~30
	Two collet chucks: 2,4 flutes 1 piece; 3,6 flutes 1 piece
Optional Equipment:	Grinding wheel :SD (for Carbide)
