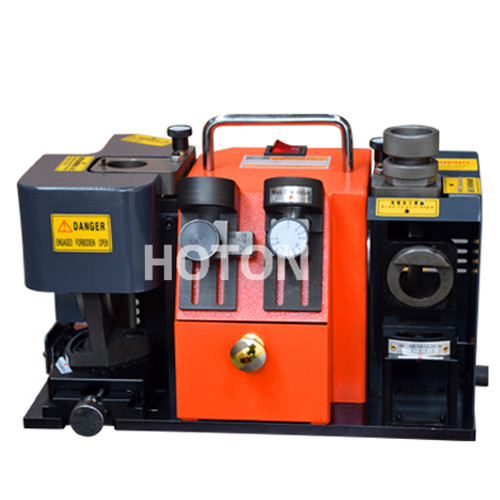

GD-313A

Product Name:

GD-313A

No. :

Advantage:

1.Complex grinder machine of 3~13 end mill surface and 2~13 twist drill bits;

2.One CBN grinding wheel of 3~13 2flutes,3flutes,4flutes and 6flutes end mills :

3.One CBN grinding wheel also for 2~13 twist drill bits ,no need to change wheel;

4.The cutter angle can be changed and easy to grind.

Model	GD-313A
Grinding range	Twist drill bit ,end mills
Material	HSS tungsten
End mill	2,3,4,6 flutes
Capacity	Drill bit:2~13,End mill:3~13
Grinding angle	Drill bit:90°~ 145°,end mill:0°~ 5°
Apex angle	0°
First relief angle	8°
Second relief angle	35°
Power	300W
Voltage	220V 50/60HZ
Wheel speed	5000R.P.M
Machine size	34x19x23cm
Weight	15Kg
