Product Name:

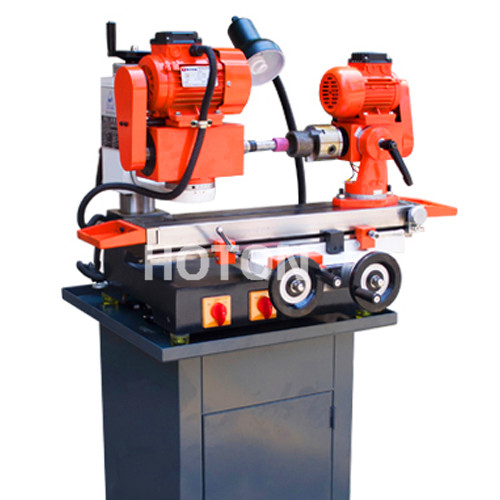

GD-6025W
No. :
 |
2) It also includes many accessories designed for specific functions.
3) From these accessories the operator can set up the correct attachment according to the cutters that need to be sharpen.
4) The machine is able to grind drilling bits, threading taps, end-milling
and slot drilling cutters, face milling cutters, turning tools, circular slitting cutters,
and saw blades (optional) etc.
5) The machines base is made of cast steel construction resulting in high stability during operation.
6) The sliding table is mounted on precise linear ball rails that provide smooth and accurate movement.
7) The grinding head support is made up of double rotating bracket, which allows the head to rotate in both the horizontal and vertical plane.
The head can rotate 360º in the horizontal plane allowing easy access of the grinding wheel to the work piece.
8) The column structure of the machine enables it to lower and raise the grinding wheel.
|
Specifications |
GD-6025W |
|
Max.Grinding Diameter |
230mm |
|
Longitudinal travel of the operating table |
300mm |
|
Horizontal Travelof the Operating table |
190mm |
|
Elevating Distance of Wheel Head |
140-200mm |
|
Rotating Angle of Wheel Head |
360° |
|
Innerbore of the grinding woek piece |
10-60mm |
|
Area of the operating Table |
130*680mm |
|
Height of the Head Holder |
200mm |
|
Speed of Grinding Wheel |
3600 RPM |
|
Taper hole of head holder |
Morse 4# |
|
Horse Power and Voltage of Motor |
3/4hp |
|
Total Power |
1hp |
|
The max. Hold capacity of the head and back holder |
230mm |
|
Grinding Wheel Size |
150*16*32mm |
|
Net Weight / Gross Weight |
209kg / 222kg |
|
Pacjubg Suze |
730*710*715mm |
