Product Name:

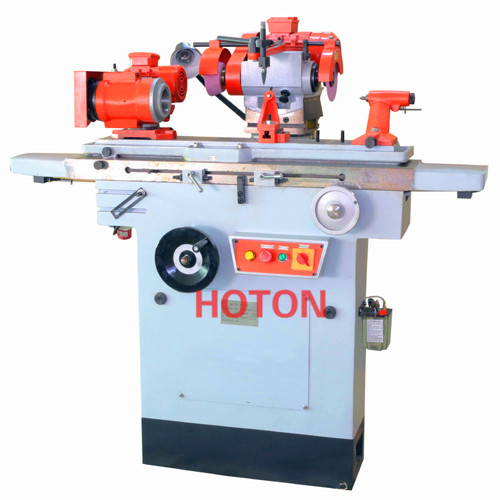

MQ6025A
No. :
 |
also for cylindrical, surface, slot and profile grinding wor. By using additionl attachments, you greatly extend the range
of application of there machinery and can solve individual machining problems, such as grinding for various hobs,
tools, sharpening cutters, twist drills and steep taper reamers, etc. The series machine wheelhead with two-dimensional
setting(except MA6025B), workhead stock swivels with double dir. And supplied with ISO-50 taper hole. Worktable is
supported in preloaded ball guide and can be driven by hand or by infinitely changing rate hydraulic.
|
Parameters |
MQ-6025A |
|
|
Swing dia.of workpiece |
250mm |
|
|
Distance between centers |
700mm |
|
|
Area if tge ioeratuib tavke |
940*135mm |
|
|
Longitudinal travel of table |
480mm |
|
|
Swing angle of table |
120°(60°) |
|
|
Max travel of wheel head cross vertical |
225mm |
|
|
Wheel center line of the min distance between the top |
50mm |
|
|
Wheel center line of the max distance between the top |
265mm |
|
|
The max movement in the vertical direction |
270mm |
|
|
Wheel center line up to the top |
200mm |
|
|
Wheel center line down to the top |
65mm |
|
|
Swing angle of wheel head in horizontal pline |
360° |
|
|
Swing angle of wheel head in vertical pline |
30°(±15°) |
|
|
The end taper of the spindle |
MT3# TAPER ANGLE |
|
|
Grinding head motor power 50Hz |
Power |
0.85/1.1KW |
|
Speed |
1400/2800rpm |
|
|
The speed of grinding head |
3010/6010rpm |
|
|
The Motor of Cylindrical grinding attachment:50Hz |
Power |
0.25KW |
|
Speed |
1400RPM |
|
|
The size of the machine |
1650*1150*1500mm |
|
|
The weight of the machine |
940kg |
|
