Product Name:

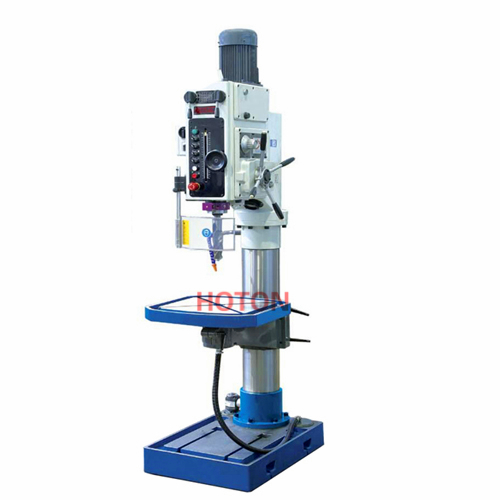

Z5050
No. :
 |
The maximum drilling capacity is 50mm on small or middle sized workpieces.
It is widely used in machine works and repair shops for single piece or small lot production,
having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.
|
Standard accessories |
|
·Work light |
|
Special accessories |
|
·Lifting worktable by motor(only for model Z5050) |
|
Model |
Z5050 |
|
Maximum Drilling Diameter |
50mm |
|
Taper Of Spindle Hole |
MT4# |
|
Distance From The Center Of Spindle To The Surface Of The Vertical Column |
375mm |
|
Maximum Travel Of Spindle |
230mm |
|
Range Of Spindle Speed |
54～2090rpm |
|
Maximum Distance From Spindle Nose To Base Plate Working Surface |
1300mm |
|
Maximum Distance From Spindle Nose To Working Table |
800mm |
|
Dimensions Of Working Table |
600×600mm |
|
Dimensions Of Base |
860×600mm |
|
Width Of T Slot |
18mm |
|
Distance Of T Slot Of Base |
280mm |
|
Range Of Feed |
0.05，0.1，0.15，0.2，0.25，0.3 |
|
Power Of Main Motor |
3.0/2.4kW |
|
Power Of Coolant Pump |
40W |
|
Overall Dimension(L×W×H) |
61×102×245cm |
|
Packing Size(L×W×H) |
258×75×114cm |
|
Gross Weight/net Weight |
920/820kg |
