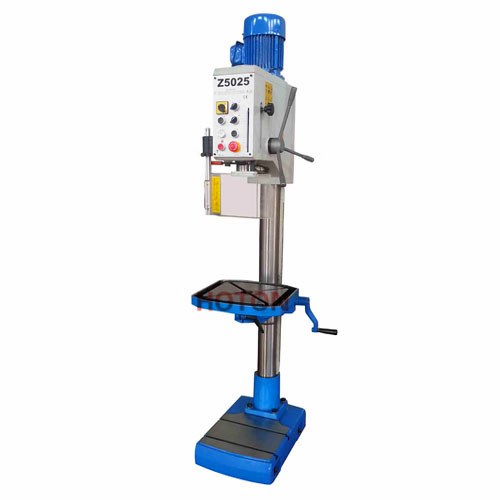

Z5025 Z5050

Product Name:

Z5025 Z5050

No. :

Drilling, tapping, boring, reaming
Strong column,Vice table,Gear drive, lower noise
Heavy-duty tapered roller bearing spindle,Positive spindle lock

Item	Z5025	Z5050
Max.drilling capacity(iron/steel)	28/25mm	50mm
Max.tapping capacity(iron/steel)	22/18mm	33mm
Spindle taper	MT3	MT4
Worktable size	380×380mm	580×580mm
Dimensions of base	535×360mm	860×580mm
Spindle travel	130mm	210mm
Distance spindle center to column surface	250mm	375mm
Spindle nose to worktable	825mm	800mm
Spindle nose to base	1220mm	1325
Column diameter	98mm	180mm
Spindle speeds range	12steps:75~3200rmp	18steps: 55~1450
Motor	1.1/0.85kw	3kw
N．W/G.W	210/250KG	750/850
Packing size(L×W×H)	2100×400×680mm	590×900×2250 mm
