Product Name:

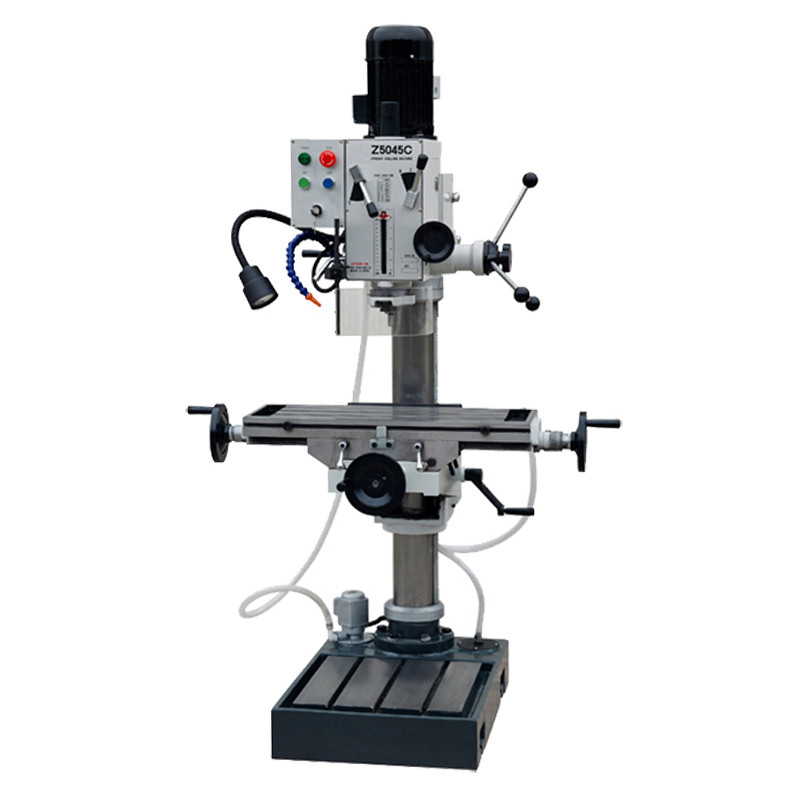

Z5032C Z5040C Z5045C
No. :
 |
Controllable automatic feed with 3 gear steps
adjustable height of gear head and table
table guides are adjustable with high precision via taper gibs
gear head swivels to both sides
cutter mounts are secured by an M16 drawbar
tapping feature
integrated coolant system
|
ITEM |
Z5032C |
Z5040C |
Z5045C |
|
Max.drilling capacity |
32mm |
40mm |
45mm |
|
Spindle taper |
M.T.3 or R8 |
M.T.4 |
M.T.4 |
|
Spindle travel |
130mm |
130mm |
130mm |
|
Step of spindle speed |
6 |
6 |
6 |
|
Range of spindle speed 50Hz |
80-1250 r.p.m |
80-1250 r.p.m |
80-1250 r.p.m |
|
60Hz |
95-1500 r.p.m |
95-1500 r.p.m |
95-1500 r.p.m |
|
Min.distance from spindle axis to column |
283mm |
283mm |
283mm |
|
Max.distance from spindle nose to worktable |
700mm |
700mm |
700mm |
|
Max.distance from spindle nose to stand table |
1125mm |
1125mm |
1125mm |
|
Max.travel of headstock |
250mm |
250mm |
250mm |
|
Swivel angle of headstock(horizontal/perpendicular) |
360°/±90° |
360°/±90° |
360°/±90° |
|
Max.travel of worktable bracket |
600mm |
600mm |
600mm |
|
Table size |
730×210mm |
730×210mm |
730×210mm |
|
Size of stand worktable of avaliability |
417×416mm |
417×416mm |
417×416mm |
|
Forward and afterward travel of worktable |
205mm |
205mm |
205mm |
|
Left anf right travle of worktable |
500mm |
500mm |
500mm |
|
Vertical travel of worktable |
570mm |
570mm |
570mm |
|
Motor Power |
0.75KW(1HP) |
1.1KW(1.5HP) |
1.5KW(2HP) |
|
speed of motor |
1400 r.p.m |
1400 r.p.m |
1400 r.p.m |
|
Net weight/Gross weight |
430kg/500kg |
432kg/502kg |
435kg/505kg |
|
Packing size |
1850×750×1000mm |
1850×750×1000mm |
1850×750×1000mm |
