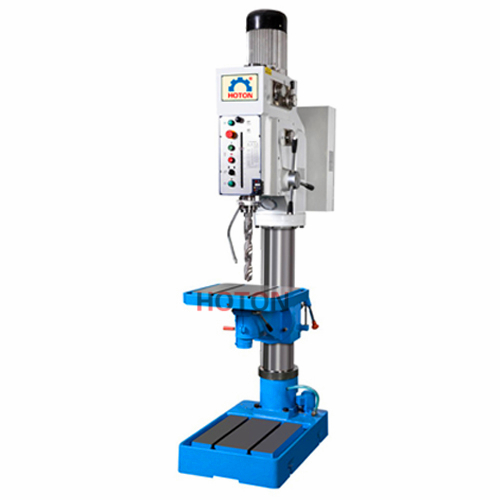

Z5030 Z5035 Z5040 Z5050

Product Name:

Z5030 Z5035 Z5040 Z5050

No. :

1.New-designed,pleasing appearance,compact construction,wide speed chande range,easy to operate.

2.Easy operation with its unique workable, and both motor-drive(Z5035) and manual-operated lifting sevice.
3.The working table can be rotated 180 and can be tited 45 also,it is reliable and easy job can be done.
4.Equipped with coolant system and tapping mechanism.
5.Equipped with shortcut and overload protection,its electricasystem with powerful spindlemotor,it designed according to IEC standard.
6.Characteristic protection device is safe and reliable.
7.Ideal choice for single pice,small batch and mass production for drilling,counter boring,reaming,tapping,spot facing,etc.

Item	Unit	Z5050	Z5040	Z5035	Z5030
Max. Drilling capacity	mm	50	40	35	30
Max. Tapping capacity	mm	M30	M27	M24	M20
Diameter of column	mm	180	160	140	120
Spindle travel	mm	240	180	160	135
Distance spindle axis to column generating line	mm	360	360	330	320
Max. Distance spindle nose to table	mm	570	590	590	550
Max. Distance spindle nose to base	mm	1160	1180	1180	1100
Spindle taper		MT4 or MT5	MT4	MT4	MT3
Spindle speeds range	r/min	42-2050	42-2050	75~2500	65~2600
Spindle feeds series		12	12	12	12
Spindle feeds	mm/r	0.07 0.15 0.26 0.40	0.07 0.15 0.26 0.40	0.1 0.2 0.3	0.1 0.2 0.3
Dimension of workable surface	mm	550x470	550x470	500*440	500*440
Table travel	mm	550	550	550	490
Dimension of base table	mm	450x440	450x440	400*390	400*390
Overall height	mm	2380	2330	2300	2050
Main motor	kw	2.2/2.8	2.2/2.8	1.5/2.2	1/1.5
Coolant motor	w	40	40	40	40
G.W/N.W	kg	1045/985	815/755	670/600	500/440
Packing dimension	cm	108x62x245	108x62x245	10862230	10862215
