Product Name:

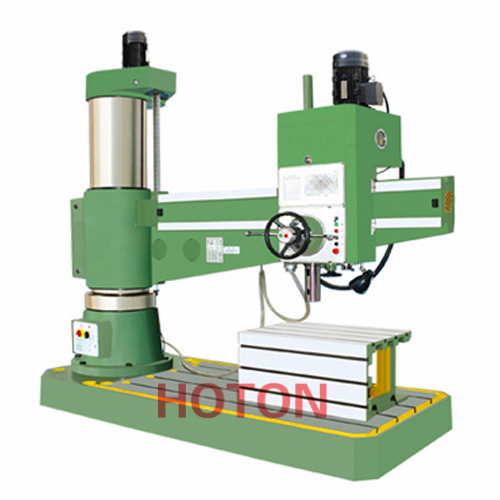

Z3063x20A
No. :
 |
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center,with high precision and efficiency, ensuring reliability and high
quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high qualit
y of material for basic parts.
Spindle parts are made by special high quality steel heat treatment to be made by first class equipments,
ensuring high strength and durability.
Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
|
SPECIFICATIONS |
Z3063×20A |
|
Max.drilling dia (mm) |
63 |
|
Distance from spindle nose to table surface (mm) |
500-1600 |
|
Distance from spindle axis to column surface (mm) |
400-2000 |
|
Spindle travel (mm) |
400 |
|
Spindle taper(MT) |
5 |
|
Spindle speeds range(r.p.m) |
20-1600 |
|
Spindle speed steps |
16 |
|
Spindle feeding range(mm/r) |
0.04-3.2 |
|
Spindle feeding steps |
16 |
|
Rocker rotary angle (°) |
360 |
|
Main motor power( kw) |
5.5 |
|
Movements motor power (kw) |
1.5 |
|
Weight (kg) |
7000 |
|
Overall dimensions (mm) |
3000×1250×3300 |
