Product Name:

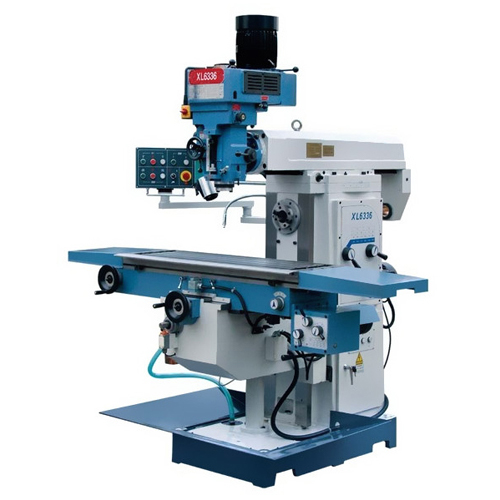

X6336
No. :
 |
2, Solid rectangular slideways for Y-axis
3, All axis with adjustable dovetail slideways
4, Right-left handed rotation
5, High concentricity precision due to taper roller bearings, less than 0.01mm measured in the spindle sleeve
5, Automatic spindle sleeve feed
6, Main switch with motor protection, right/left handed rotation switch, emergency-stop button
7, Price-efficient and value stable
|
Specification |
Unit |
Technical parameters |
|
Model |
|
X6336 |
|
Spindle taper |
|
ISO40(VERTICAL) ISO50(HORIZONTAL) |
|
Spindle travel |
mm |
140 |
|
Sleeve feed |
mm/r |
0.04/0.08/0.15 |
|
Distance from vertical spindle to column |
mm |
200-600 |
|
Distance from vertical spindle to table |
mm |
180-530 |
|
Distance from horizontal spindle to table |
mm |
0-350 |
|
Distance from horizontal spindle to arm |
mm |
230 |
|
Spindle speed range |
r/min |
63~2917/10(vertical) 60~1800/12(horizontal) |
|
Table size |
mm |
1250x360 |
|
Table travel |
mm |
1000x320x350 |
|
Range of longitudinal,cross travel |
mm/min |
15~370/(MAX.540) |
|
Up/down speed of table |
mm |
590 |
|
T of table(N0./WIDTH/DISTANCE) |
mm |
3/18/80 |
|
Main motor |
kw |
5.5(vertical)4(horizontal) |
|
Motor of table power feed |
kw |
0.75 |
|
Up/down motor of headstock |
kw |
1.1 |
|
Coolant pump motor |
kw |
90 |
|
Speed of coolant pumps |
L/min |
25 |
|
Overall dimension |
mm |
2220x1790x2360 |
|
N.W./G.W. |
kg |
2340/2540 |
