Product Name:

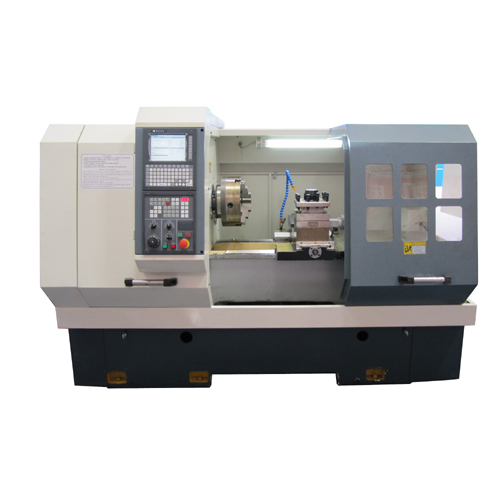

CK6460E-1
No. :
 |
2. The automatic feeding rack can be selected optionally according to user requests.
3. Its spindle is supported by high-precision rolling bearing, which realizes high turning precision, the carriage in vertical and horizontal direction is driven by high-precision ball screw, which has satisfactory dynamic performance and high positioning accuracy.
4. The machine tool adopts cast iron with the hardness of more than HRC45 after VHF hardening as the material; ensure the machining precision stably in a long-term manner.
5. Considering vibration during turning, the base of high strength and widened extension unit is designed, which is particularly suitable for powerful turning.
|
Model |
CK6460E |
|
Swing over bed |
600mm |
|
Max. swing diameter of carriage |
380mm |
|
Max. processing length |
500mm |
|
Form of main transmission |
Third gear mechanical transmission frequency conversion stepless speed |
|
No. of spindle speed |
Variable speed |
|
Spindle speed range |
50-1700r/min |
|
Spindle nose |
C8 |
|
Diameter of spindle hole |
72mm |
|
Taper of spindle hole |
metric system 80 1:20 |
|
Main electric motor model |
YVP132M-4-7.5kW |
|
Max. travel of tool slide |
X-axis:400mm Z-axis:500mm |
|
Ball screw dia. x thread pitch |
X-axis:25x5mm Z-axis:40x6mm |
|
Fast moving speed |
X-axis:4000mm Z-axis:4000mm |
|
Positioning precision |
X-axis:0.02mm Z-axis:0.025mm |
|
Repeatability precision |
X-axis:0.008mm Z-axis:0.012mm |
|
Processing precision |
IT6-IT7 |
|
Rough degree of processing surface |
Ral.6 |
|
Standard tools |
electric vertical four station turret |
|
Optional tools |
electric horizontal six station turret |
|
Repeatability precision |
0.005mm |
|
Cutter rod |
25x25mm |
|
Standard system |
GSK980TDb |
|
Optional system |
HNC-18I/TD |
|
Servo drive motor |
X-axis:5N.M Z-axis: 7.5N.M |
|
Overall dimension |
2500x1600x1700mm |
|
Machine weight |
2700 kg |
