Product Name:

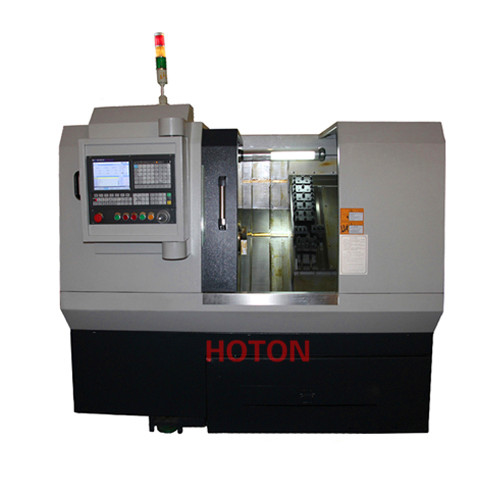

TCK46
No. :
 |
the surface of arc, cone, rotary body. Its higher speed could meet the higher speed processing requirement
of ferrous and non-ferrous metal.It could turn the car, motorcycle, electronics, aerospace, military parts with
higher efficiency,
larger quantity and high precision. Its machining precision could reach level 7.
Features:
1.30 degrees slant bed
2.Higher rigidity cast iron
3.Higher accuracy Taiwan HIWIN linear
4.Integrated automatic lubrication system
5.Removable hidden type hydraulic tailstock
6.8 station hydraulic turret
7.Screw pre-stretching structure
|
Standard Accessories |
Optional Accessories |
|
GSK980TDC or Siemens 808D NC system Servo motor 7.5 kw 8 station hydraulic turret 8" domestic thru-hole type hydraulic chuck |
NC System: KND1000Ti, Fanuc Oi Mate-T Main Motor: Servo 11/15 KW Inverter 11 KW Turret: 8 station electric turret Chuck: 8″Non-through hole hydraulic chuck 8″Non-through hole hydraulic chuck (Taiwan) 8″through hole hydraulic chuck(Taiwan) 10″Non-through hole hydraulic chuck (Taiwan) 10″through hole hydraulic chuck(Taiwan) Chip conveyor Steady Rest Without tailstock |
|
Specification |
Unit |
TCK46A |
|
Max. swing over bed |
mm |
Φ460 |
|
Max. swing over cross slide |
mm |
Φ170 |
|
Max. processing length |
mm |
350 |
|
X/Z axis travel |
mm |
240/400 |
|
Spindle unit |
|
170 |
|
Spindle nose |
|
A2-5(A2-6 optional) |
|
Spindle bore |
mm |
56 |
|
Spindle drawing pipe diameter |
mm |
45 |
|
Spindle speed |
rpm |
3500 |
|
Spindle motor |
kw |
5.5 |
|
X/Z axis motor torque |
NM |
7.5/7.5 |
|
Guide type |
|
Taiwan linear guide way |
|
N.W. |
KG |
2600 |
